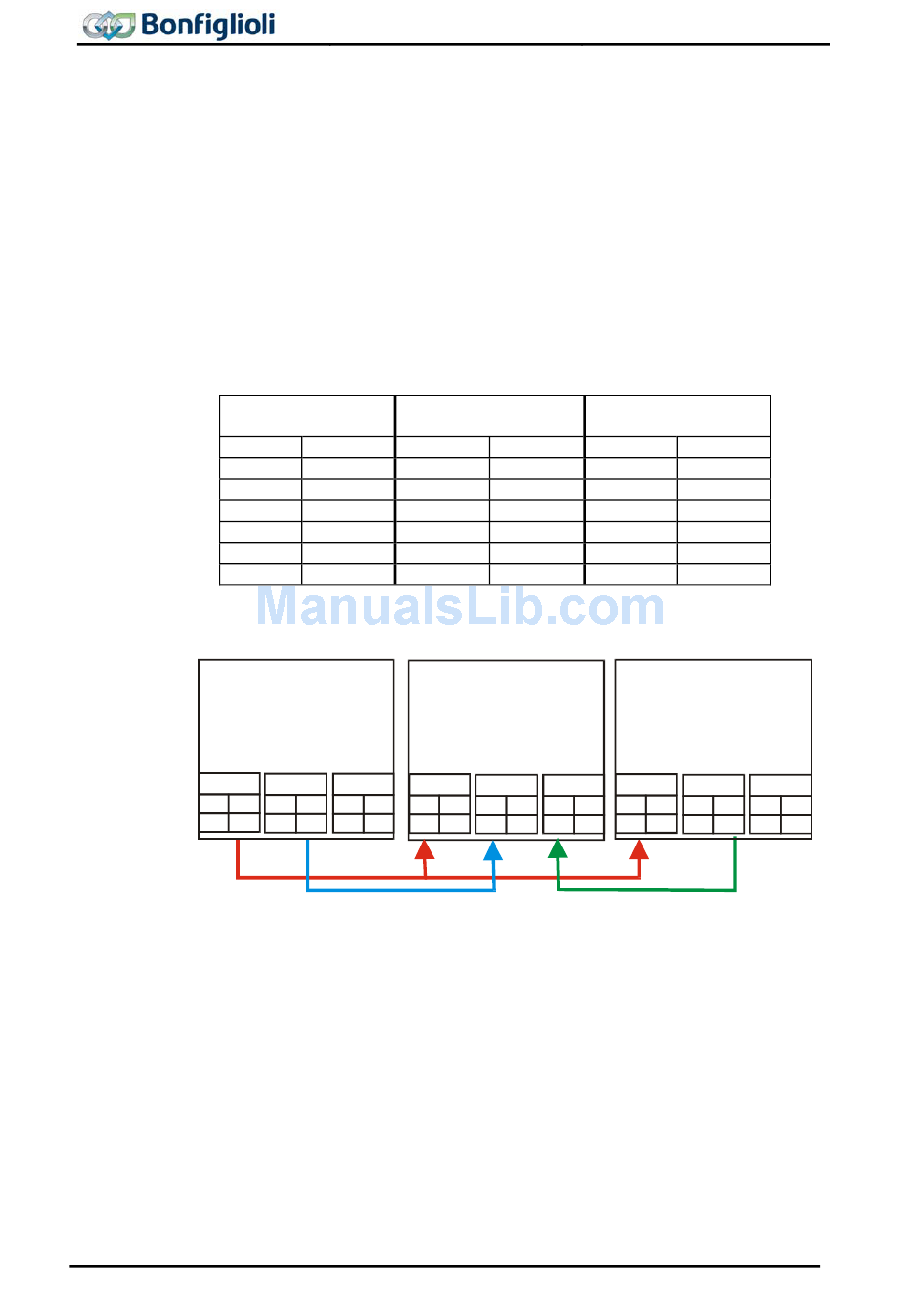

Communication relationships of the process data channels

Regardless of the process data to be transmitted, the communication relationships of
the process data channels must be defined. The connection of PDO channels is done
via the assignment of the identifiers. The identifiers of Rx-/Tx-PDO must match in
each case.
Generally, there are two possibilities:
-
-
This process is documented in a tabular form via a communication relationship
list.
Example:
Frequency inverter
PDO
TxPDO1
RxPDO1
TxPDO2
RxPDO2
TxPDO3
RxPDO3
Atten-
tion:
Frequency inverter 1
PDO1
Rx Tx
385
68
one Rx-PDO to one Tx-PDO (one to one)
connect several Rx-PDO's to one TxPDO (one to many)
Frequency inverter 2 Frequency inverter 3
1
Identifier PDO
385 TxPDO1
RxPDO1
641 TxPDO2
RxPDO2
TxPDO3
RxPDO3
All the TxPDOs used must have different identifiers !!!
The Identifier must be clear in the system bus network.
Frequency inverter 2
PDO2 PDO3 PDO1
Rx Tx Rx Tx
Rx Tx
641
385
EM-ABS-01 for ACU
Identifier PDO
TxPDO1
385 RxPDO1
TxPDO2
641 RxPDO2
TxPDO3
642 RxPDO3
Frequency inverter 3
PDO2 PDO3 PDO1
Rx Tx Rx Tx Rx Tx
641 642 385
Identifier
385
642
PDO2 PDO3
Rx Tx Rx Tx
642
03/12
