5.3.2.3
Cable assembly Hiperface

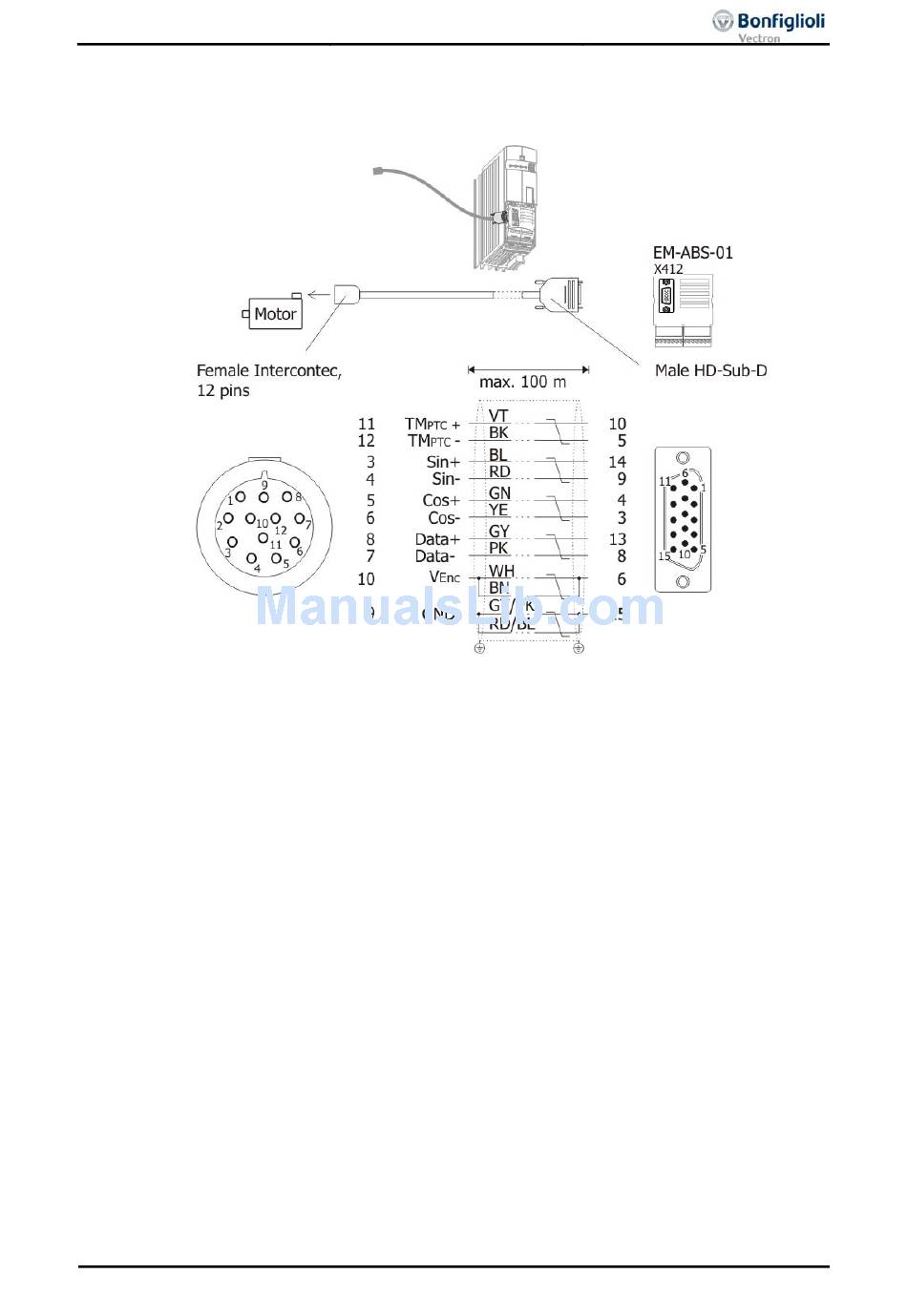

Contact assignment BONFIGLIOLI VECTRON assembled cable for connec-
tion of Hiperface encoders
•
Use PTC resistors with safe isolation from motor winding according to EN 61800-
5-1.
•
Use shielded and twisted cables.
•
Install encoder cable separate from motor cable.
•
Connect the shield of the encoder line properly on both sides.
•
BONFIGLIOLI VECTRON recommends using the pre-assembled cables for syn-
chronous motors types BCR and BTD.
03/12
EM-ABS-01 for ACU
25
