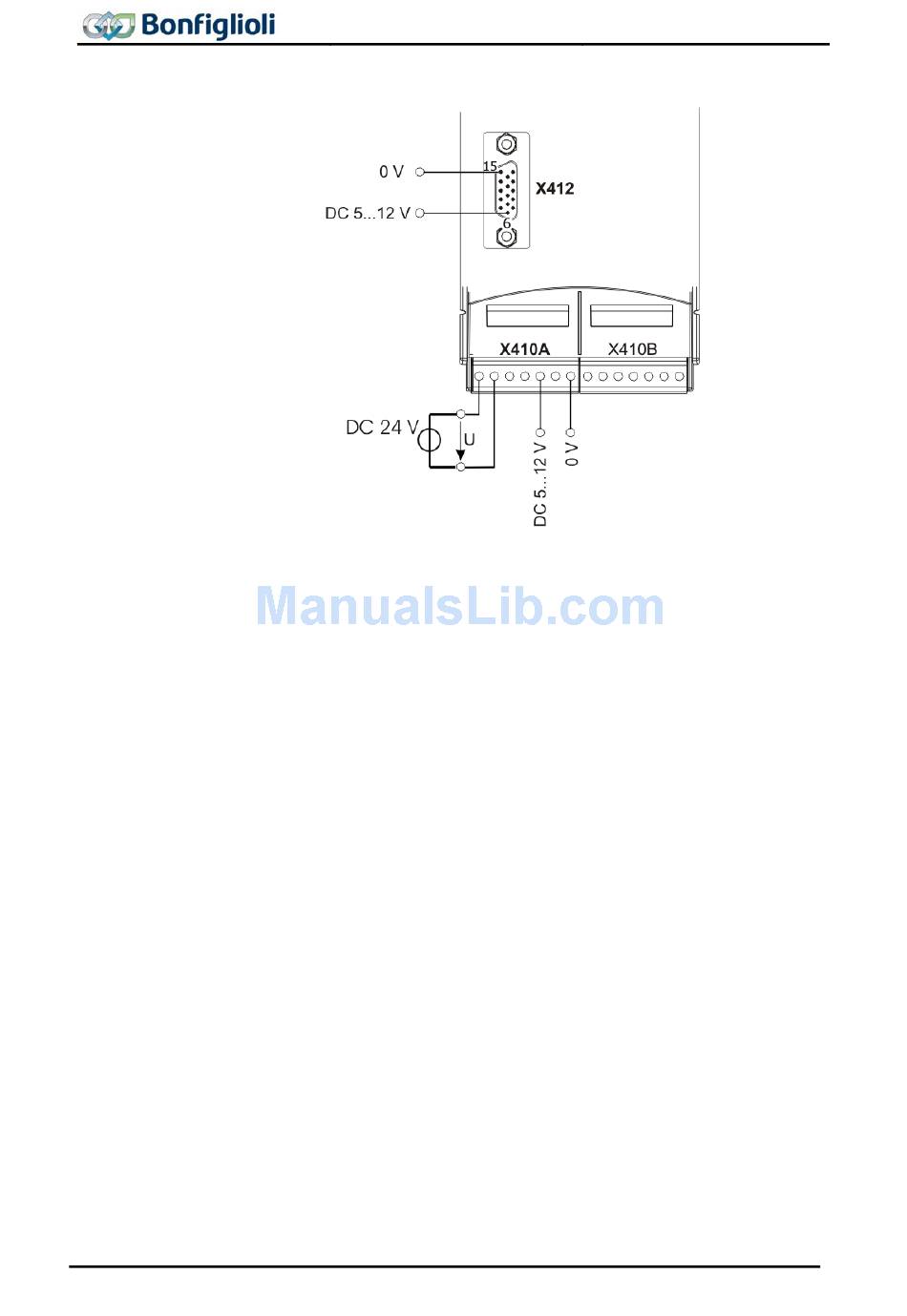

Voltage input and voltage outputs for encoder power supply
Terminal X410A.1: DC 24 V input
Terminal X410A.2: DC 24 V ground
Terminal X410A.5 and X412.6: DC 5...12 V output
Terminal X410A.5 and X412.15: DC 5...12 V ground
Connect a maximum load of 2 W !
5.3.3.3

Direct connection of external power supply to the encoder

Encoders with high power demand (> 2 W) or voltage higher than DC 12 V must be
connected to an external power supply directly.
Set parameter
This setting must be used for proper function of the evaluation. However the power
supply terminals do not have to be connected but should remain open.
The voltage level set in
See chapter 8.4.4 "Supply voltage".
Note:
28
1186 to "1-internal". See chapter 8.4.3 "Power supply".
Power supply
Supply voltage
In this case, do not set
This will result in faults and system shutdown
EM-ABS-01 for ACU
1187 is irrelevant when the terminal is open.
1186 to modes with "sense" line.
Power supply
