Set High End or Low End Trim

• If you are unsure about appropriate high and low end settings,
please contact Lutron Technical Support for assistance.
• High and low end trim settings limit the maximum and minimum
output of a dimming zone. Trim levels are set automatically when
the load type is programmed.

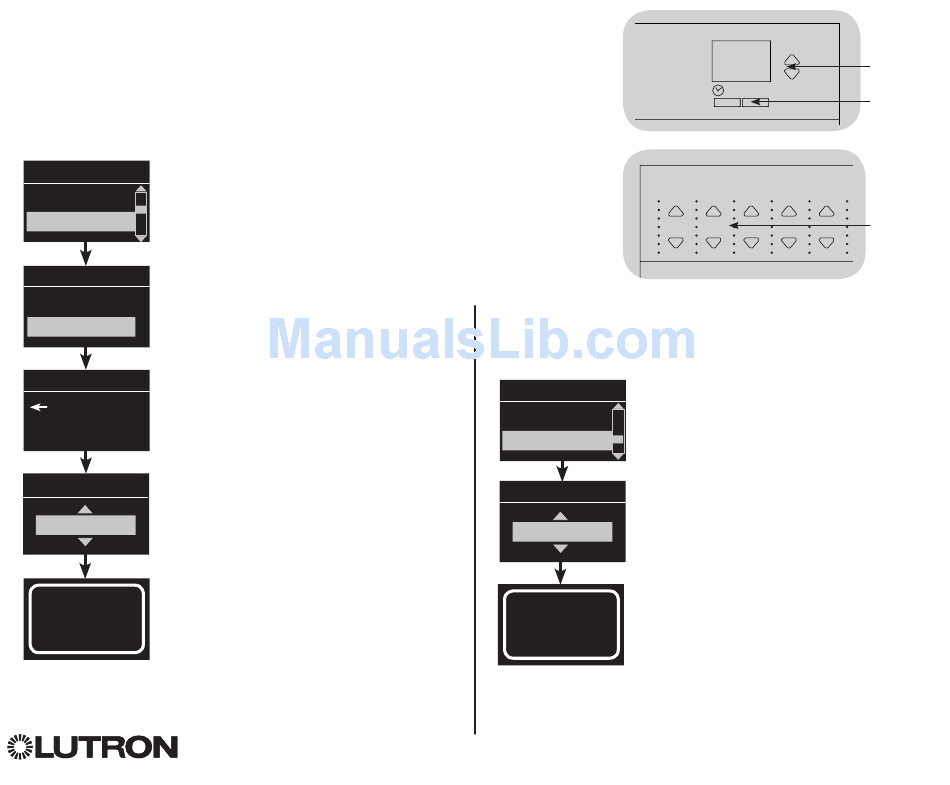

1. Enter programming mode (see page 15).
Main menu
2. Use the Master buttons to highlight
CCI Mode
"Zone setup" and press the OK button to
accept.
Zone setup
3. Use the Master buttons to highlight "High
end" or "Low end" (this example shows
low end). Press the OK button to accept.
Zone setup
4. Use the zone raise/lower buttons to set
High end
the high end or low end trim for that
zone. The info screen will display each
Low end
zone number and percentage as you
adjust it. Press the OK button to accept.
5. The info screen will confirm that your
Low end
setting has been saved.
Set zones
6. Exit programming mode (see page 15).
Zone 2
10%
Saved
®
1 2 3 4 5

Set Minimum Level (optional)

Some local regulations specify a minimum lighting level for
dimming zones in occupied buildings. If this pertains to you,
follow these steps to set up your minimum lighting level.
Zone setup
Low end
Min level
Min level
6
1 2
1. Enter programming mode (see page 15)
and select "Zone setup," then "Min level".
Press the OK button to accept.
2. Use the Master buttons to highlight
"OFF" if you want your lights to go all
the way off at their minimum light level,
or "10%" if you want that to be the
minimum light level. Press the OK button
to accept.
Off
Note: Non-dim loads will turn off
regardless of the minimum level setting.
3. The info screen will confirm that your
minimum level has been saved.
4. Exit programming mode (see page 15).
Saved
