Adjusting Shade Settings

Setting Limits

Note: Entering Limit Setup mode may
cause shades to move approximately 8
inches (200 mm) up or down. Be sure
that each shade is positioned so that
the fabric can safely move 8 inches (200
mm) up or down before entering Limit
Setup mode .

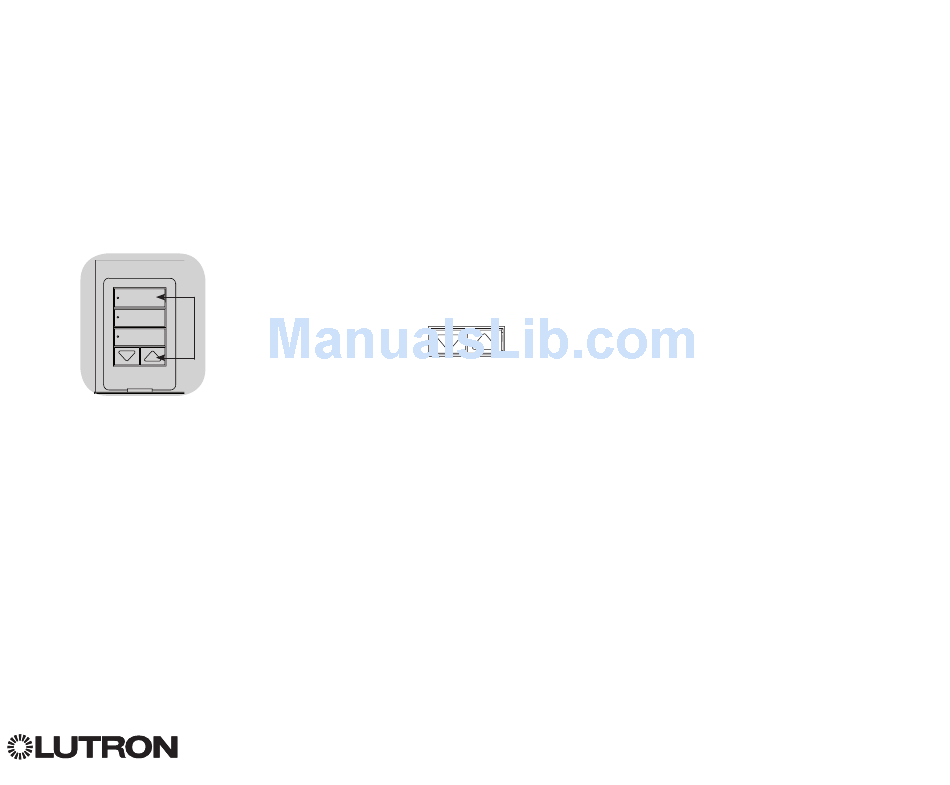

1. On any shade button group, press and
1 2
hold simultaneously the top and raise
buttons. The LEDs next to the top and
bottom buttons will cycle.
At any time while in Limit Setup mode,
you can move all shades together to their
current open limit by double-tapping the
top button, or to their current close limit
by double-tapping the bottom button.
Once shade/blind electronic drive units
(EDUs) have been assigned to shade
button groups, limits can be set for an
EDU only using the shade button group
it is assigned to, and a shade button
group can set limits only for those EDUs
assigned to it.
®
(for Wired and Wireless Sivoia
2. Select the EDU you want to adjust using
the top button on the shade button
group. Each time you press and release
the top button, a different EDU that is
assigned to that shade button group will
open and close in an 8-inch (200 mm)
range to indicate it is selected.
Tap the top button until the EDU for the
shade you wish to adjust moves. (You
3 4 5 6
can also use the bottom button, which
moves through the assigned EDUs in the
opposite order.)
3. Adjust the currently selected EDU to
the desired level for the open limit (the
maximum the shade is allowed to open)
using the raise and lower buttons.
4. Press and hold the top button on the
shade button group for 5 seconds to
store the current position as the open
limit. The LED next to the top button will
flash quickly for 2 seconds.
5. Adjust the currently selected EDU to
the desired level for the close limit (the
maximum the shade is allowed to close)
using the raise and lower buttons.
6. Press and hold the bottom button on
the shade button group for 5 seconds
to store the current position as the close
limit. The LED next to the bottom button
will flash quickly for 2 seconds.
QS Shades/Drapes)
®
7. Repeat steps 2 through 6 to set the open
and close limits for each shade assigned
to the shade button group.
8. Press and hold simultaneously the top
and raise buttons on the shade button
group to exit Limit Setup mode.
OK
GRAFIK Eye QS Installation and Operation Guide 46
®
