Wiring the GRAFIK Eye

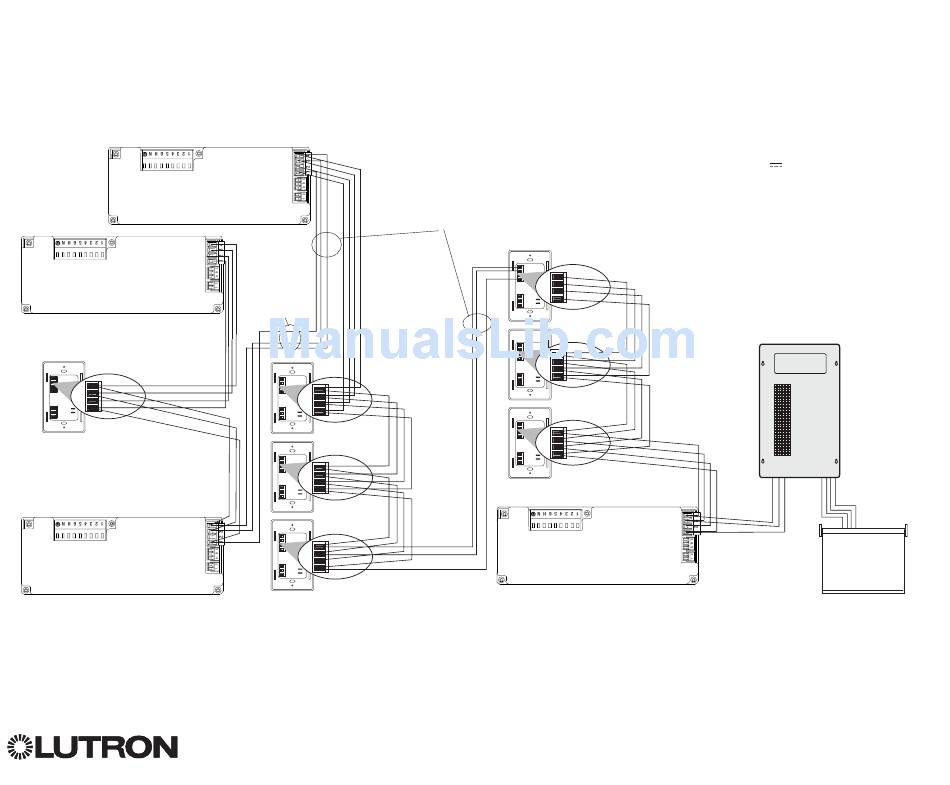

QS Link Control Wiring and Terminal Connection Example

Control units shown in rear view
QS3
QS1
1
4
3
2
1
QS1 powers wallstation 1
only; terminal 2 terminates at
wallstation 1
QS2
®
QS:
®
QS2 and
QS3 have
their own
power
supply; no
terminal 2
connection
2
4
3
2
1
3
4
3
2
1
4
4
3
2
1
QS4 powers wallstations 5, 6, and
7 only; no terminal 2 connection
between wallstations 4 and 5
QS3 powers
wallstations 2, 3,
and 4; no terminal 2
connection between
wallstations 4 and 5
5
4
3
2
1
6
4
3
2
1
7
4
3
2
1
QS4
GRAFIK Eye
• Connect the terminal 1, 3, and 4
connections to all control units,
wallstations, and control interfaces.
• Each control unit has its own power
supply. Terminate the terminal 2
connection (24 V power) so that each
control unit supplies power to a maximum
of three wallstations. Do not connect
terminal 2 between a GRAFIK Eye QS
control unit and any other GRAFIK Eye
QS control unit and/or another power
supply.
• Each wallstation should receive power
from only one control unit.
Sivoia QS
smart power
supply panel
QS Installation and Operation Guide 9
®
Power
panel
powers
this shade
only
Sivoia QS
shade
