Associating Pico

®
When a GRAFIK Eye QS wireless system includes a Pico wireless control, you can use the Pico
wireless control as either a scene controller or a zone controller. This page describes using the Pico
wireless control as a scene controller; the next page describes using it as a zone controller.
To use the Pico wireless control as a scene controller with a GRAFIK Eye QS Wireless control unit:
1. Make sure the wireless mode of the GRAFIK Eye QS control unit is "Enabled" (see page 16).
2. On the Pico, press and hold the top (on) and bottom (off) buttons for 3 seconds. The LED on the Pico
will flash slowly, and the scene button LEDs on the GRAFIK Eye QS will all flash.

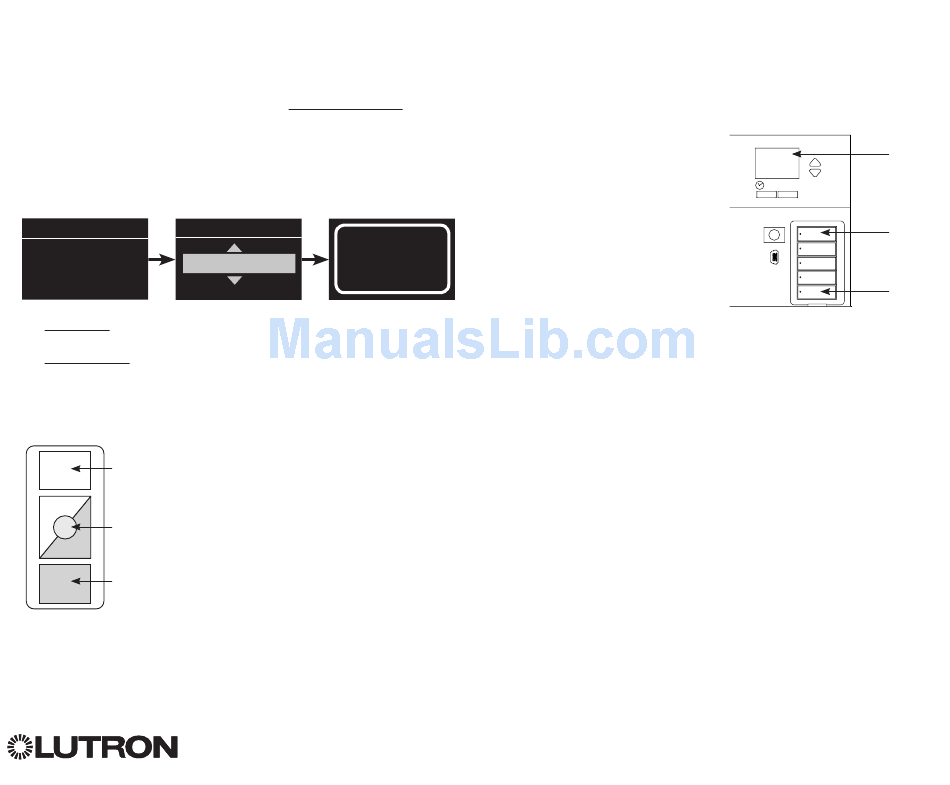

3. On the GRAFIK Eye QS, the info screen will ask for confirmation that you wish to change the type;
press the OK button. Use the Master buttons on the GRAFIK Eye QS to select "Scene". Press OK to
save.
Pico
Change type?
Press OK
4. To associate the GRAFIK Eye QS with the Pico, press and hold the top scene button on the
GRAFIK Eye QS for 3 seconds (until the LEDs all flash).
To disassociate the GRAFIK Eye QS with the Pico, press and hold the bottom scene button on the
GRAFIK Eye QS for 3 seconds (until the LEDs stop flashing).
5. On the Pico, press and hold the top (on) and bottom (off) buttons for 3 seconds. The LED on the Pico
and the LEDs on associated GRAFIK Eye QS Wireless control units will stop flashing.
Functionality of the Pico control when programmed as a scene controller:
Light
Top button: Scene 1
On
Adjust
Center round button: Scene 16
Off
Bottom button: Off
Note: The wireless signal has a range of 30 feet (10 m) through standard construction.
®
Wireless Controls and GRAFIK Eye
Change type?
Saved
Scene
®
1 2 3
Saved
QS Wireless Control Units
4 5 6

GRAFIK Eye

QS Installation and Operation Guide 43
®
OK
Associate
OR
Disassociate
On the GRAFIK Eye QS control
unit, press and hold the top
scene button for 3 seconds to
associate, or press and hold
the bottom scene button for 3
seconds to disassociate with
the Pico control.
