Wiring the GRAFIK Eye

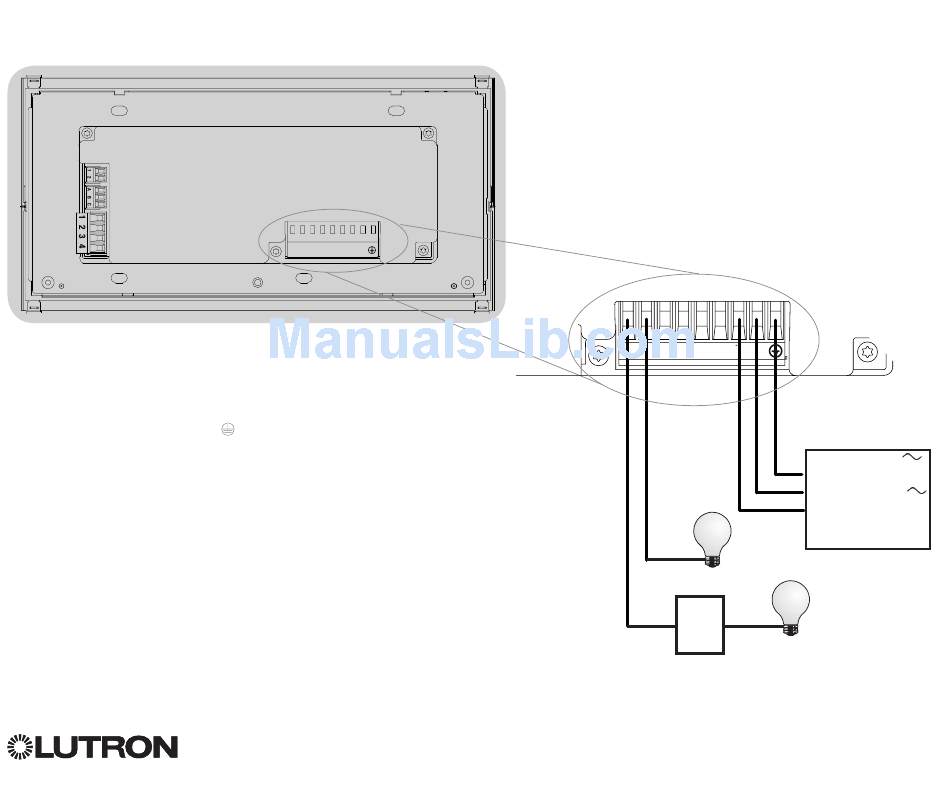

Overview of Line Voltage/Mains Wiring
®
QS:
®
1 2 3 4 5 6 L N
Line Voltage/Mains
Cables and Load Wiring
Terminal labels:
L: Hot/Live
N: Neutral
: Ground
1-6: Dimmed/Switched
line voltage outputs
12 AWG (4.0 mm
)
2
each terminal
1 2 3 4 5 6 L N
Incandescent load
Power module
GRAFIK Eye
QS Installation and Operation Guide 4
®
120 - 127 V
or
220 - 240 V
Distribution
Panel
Load controlled
by power module
