Associating Wireless Occupancy Sensors and GRAFIK Eye

(for wireless enabled units only)
Lutron's wireless Radio Powr Savr
be associated with the GRAFIK Eye QS Wireless to activate scenes when
occupancy or vacancy is detected.
This section applies to installations where the GRAFIK Eye QS Wireless is
being used in a single-room wireless installation. Refer to the RadioRA
2 installation guide for setting up occupancy and vacancy sensors in a
RadioRA 2 system.
®
To associate wireless occupancy sensors and GRAFIK Eye QS control units:
1. Make sure the wireless mode of the GRAFIK Eye QS control unit is
"Enabled" (see page 16).
2. Press and hold the "Lights On" and "Lights Off" buttons on the front of
the occupancy/vacancy sensor simultaneously until the lens starts flashing
(about 3 seconds). The info screen on the GRAFIK Eye QS will display
"Occ Sensor Programming."
3. Press and hold the top scene button of the GRAFIK Eye QS Wireless
control unit until the LEDs flash (about 3 seconds).
4. Return to the occupancy sensor. Press and hold the "Lights On" and
"Lights Off" buttons simultaneously until the lens stops flashing (about 3
seconds).
5. Test communication between the devices using the "Lights On" and "Lights
Off" buttons.
To disassociate wireless occupancy sensors and GRAFIK Eye control units:
Simply repeat the association steps, in the same order; press and hold the
bottom scene button on the GRAFIK Eye QS to disassociate.
Note: The wireless signal has a range of 30 feet (10 m) through standard
construction.

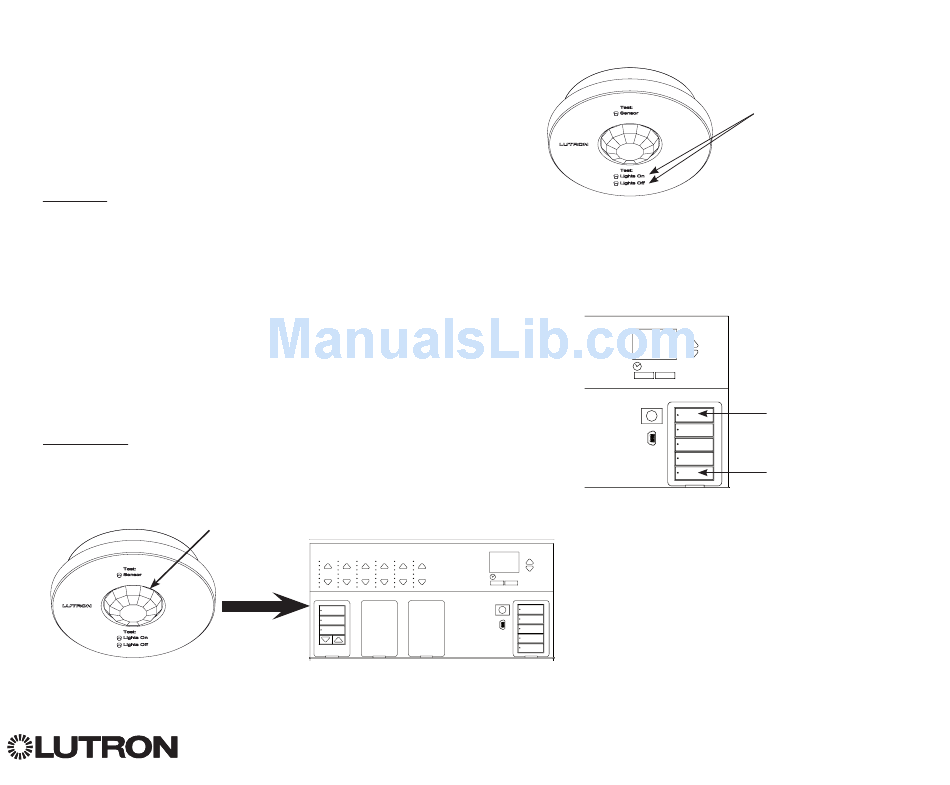

Wireless Occupancy Sensor
"Talks" to GRAFIK Eye QS control
unit, activating scenes on the
GRAFIK Eye QS.
®
occupancy and vacancy sensors can
TM
1
Lens
1 2 3 4
GRAFIK Eye QS Control Unit
"Listens" to wireless occupancy sensor,
so that the occupancy sensor activates
scenes on the GRAFIK Eye QS.
®
2 3 4 5 6
5 6
OK
GRAFIK Eye
QS Wireless Control Units
®
On the wireless occupancy
sensor, press and hold the
"Lights On" and "Lights Off"
buttons for 3 seconds to
begin or end association
or disassociation with the
GRAFIK Eye QS control unit.
Note: Pressing the "Lights
On" button initiates the
"occupied" action on the
GRAFIK Eye QS control
unit. Pressing the "Lights
Off" button initiates the
"unoccupied" action.
OK
Associate
OR
Disassociate
On the GRAFIK Eye QS control unit,
press and hold the top scene button
for 3 seconds to associate, or press
and hold the bottom scene button for
3 seconds to disassociate with the
occupancy sensor.
QS Installation and Operation Guide 22
®
