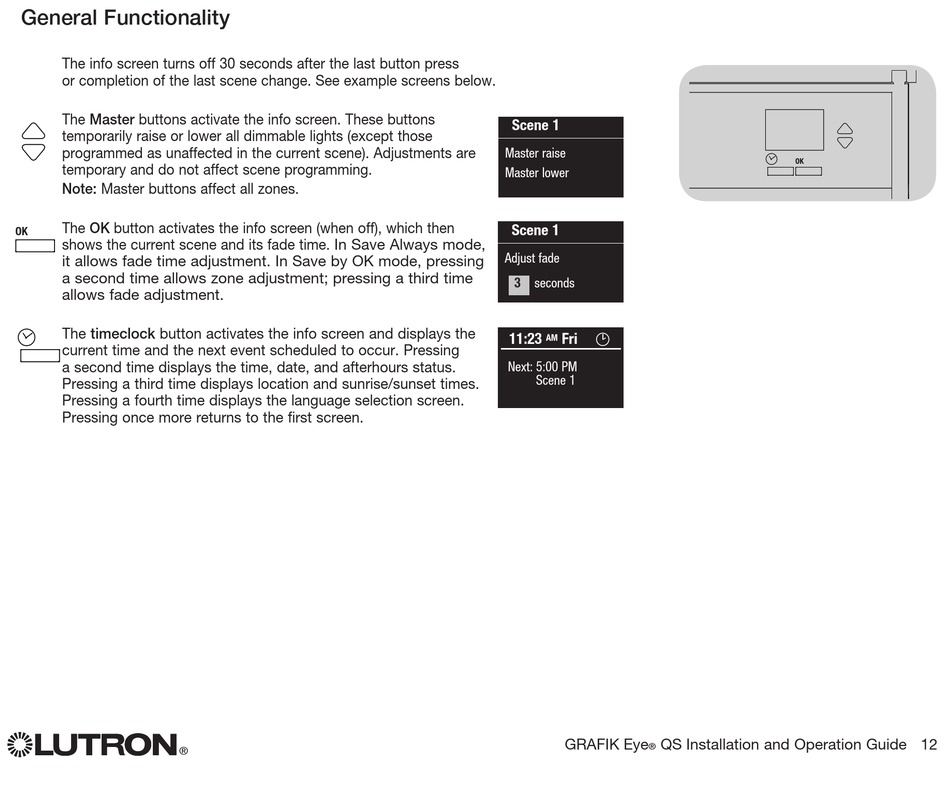

General Functionality

The info screen turns off 30 seconds after the last button press
or completion of the last scene change. See example screens below.
The Master buttons activate the info screen. These buttons
temporarily raise or lower all dimmable lights (except those
programmed as unaffected in the current scene). Adjustments are
temporary and do not affect scene programming.
Note: Master buttons affect all zones.
The OK button activates the info screen (when off), which then
OK
shows the current scene and its fade time. In Save Always mode,
it allows fade time adjustment. In Save by OK mode, pressing
a second time allows zone adjustment; pressing a third time
allows fade adjustment.
The timeclock button activates the info screen and displays the
OK
current time and the next event scheduled to occur. Pressing
a second time displays the time, date, and afterhours status.
Pressing a third time displays location and sunrise/sunset times.
Pressing a fourth time displays the language selection screen.
Pressing once more returns to the first screen.
®
