Adjusting Shade Settings

Preset Adjustment: Simple Method

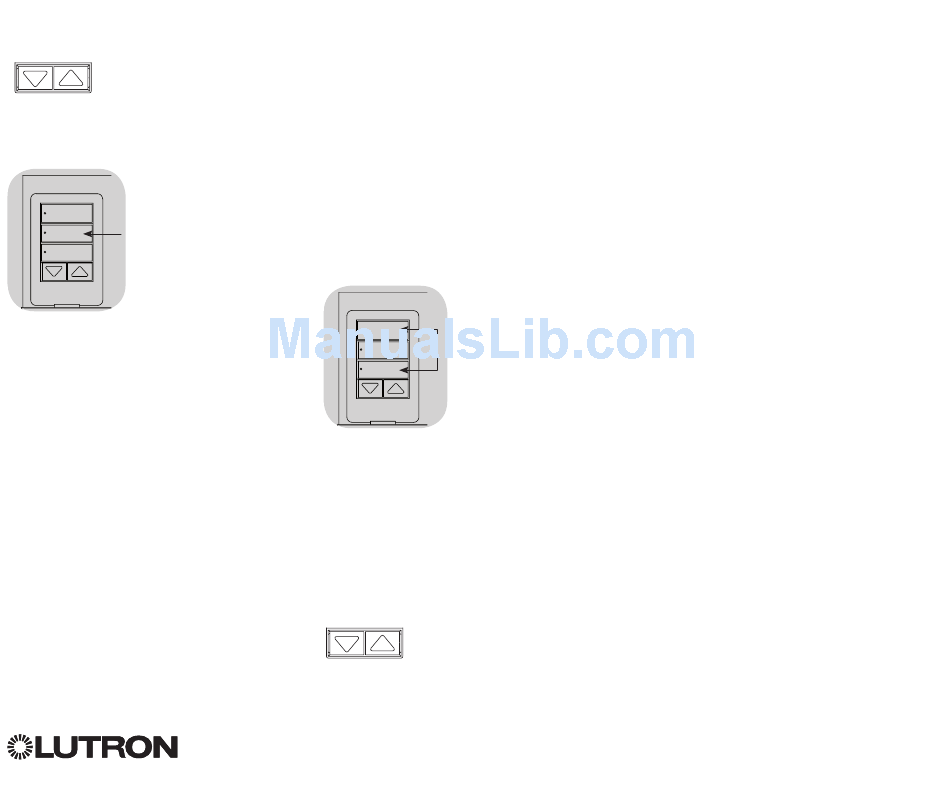

1. Use the raise and lower
buttons on the shade
button group to set all
1 2 3 4 5
EDUs (electronic drive
units of the shades)
to the desired preset
levels.
2. Press and hold the
middle button on the
shade button group for
5 seconds to save the
EDU preset positions.
The LED next to the
button will flash and
then light continuously,
indicating the preset
has been stored.
Note: Once EDU presets have been
assigned to buttons on a shade button
group, those presets are accessible for
an EDU only using the shade button
group it is assigned to, and a shade
button group can access preset levels
only for those EDUs assigned to it.
®
(for Wired and Wireless Sivoia

Preset Adjustment: Advanced Method

Note: The advanced method for adjusting
presets is needed only if you wish to
have the shades assigned to the shade
6
button group set at different positions in
the preset. If, however, you wish all the
shades in the group to be lined up with
one another in the preset, you should use
the Simple Method at left.
Note: Entering Assignment mode will
cause the shades to move between their
1 2
open and close limits. Be sure that the
open and close limits have been set
correctly .
2. Press and release the middle button on
that shade button group. The adjacent
LED will blink rapidly. EDUs for assigned
shades will automatically move to their
current preset settings.
QS Shades/Drapes)
®
OK
3 4 5 6
1. On the shade button
group whose preset
you wish to adjust,
press and hold
simultaneously the top
and bottom buttons.
The LEDs next to the
buttons will flash. EDUs
(electronic drive units)
for the assigned shades
will move to their
closed limits, and EDUs
for unassigned shades
will move to their open
limits.
3. Use the raise and lower
buttons to move all EDUs
for assigned shades
together to the desired
preset setting.
GRAFIK Eye
4. To move an EDU individually to its
desired preset setting, select the EDU
using the top button on the shade button
group. Each time you press and release
the top button, a different EDU that is
assigned to that shade button group will
open and close in an 8-inch (200 mm)
range. Press repeatedly until the EDU
for the shade you wish to adjust moves.
Adjust that EDU to the desired height
using the raise and lower buttons.
Repeat this step for all assigned EDUs.
5. Once you are satisfied that all the
OK
assigned EDUs are set to the positions
you want to assign as the preset, press
and hold the middle button on the shade
button group for 5 seconds. The preset
will be saved.
6. Press and hold simultaneously the top
and bottom buttons on the shade button
group for 5 seconds to exit to normal
mode. The LEDs next to the buttons will
stop flashing.
QS Installation and Operation Guide 47
®
