Zone Setup

Assign Load Types

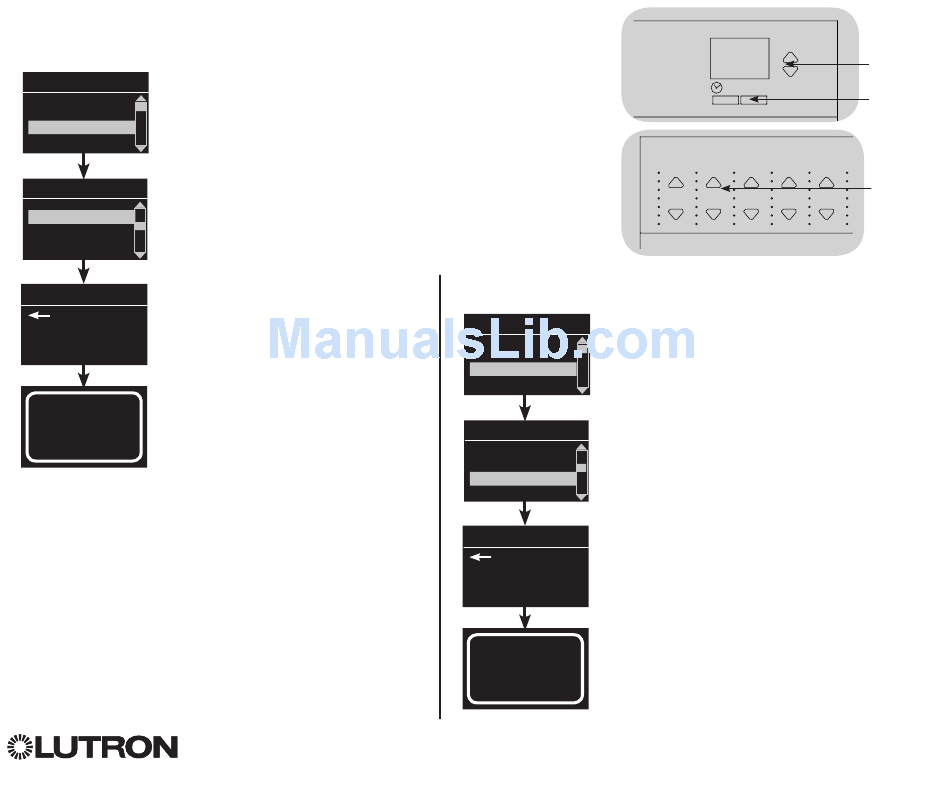

1. Enter programming mode (see
Main menu
page 15).
CCI Mode
2. Use the Master buttons to
Zone setup
highlight "Zone setup" and press
the OK button to accept.
3. Use the Master buttons to
Zone Setup highlight "Load type". Press
the OK button to accept. See
Load Type
"Setting Load Types" table on
Non-Dim Load Type
the next page.
4. Use the zone raise/lower buttons
to choose the load type for that
zone. See the list on the next
Load Type
page for supported load types.
Set zones
Press the OK button to accept.
5. The info screen will confirm that
your load type has been saved.
6. Exit programming mode (see
page 15).
Saved
®
1 2 3 4 5

Assign Non-Dim Load Type

Zones assigned to non-dim loads have three available configurations:
Main menu
CCI Mode
Zone setup
Zone Setup
Load Type
Non-Dim Load Type
Load Type
Set zones
Saved
6
1 2 3
• LOFO: Last On, First Off
• FOFO: First On, First Off
• FOLO: First On, Last Off
Scenes made up of both dim and non-dim
load types will toggle the non-dim loads
before the dim loads in a "First" on/off
configuration, and after the dim loads in a
"Last" on/off configuration.
1. Enter programming mode (see page 15).
2. Use the Master buttons to highlight "Zone
setup" and press the OK button to accept.
3. Use the Master buttons to highlight "Non-Dim
Load type". Press the OK button to accept.
See "Setting Load Types" table on the next
page.
4. Use the zone raise/lower buttons to choose
the non-dim load type for that zone. (Zones
not programmed as non-dim will be displayed
as Unaffected.) Press the OK button to
accept.
5. The info screen will confirm that your load
type has been saved.
6. Exit programming mode (see page 15).
GRAFIK Eye QS Installation and Operation Guide 17
®
Master
buttons
OK
OK button
4 5 6
Use the
zone
raise/lower
buttons to
choose the
load type for
that zone.
