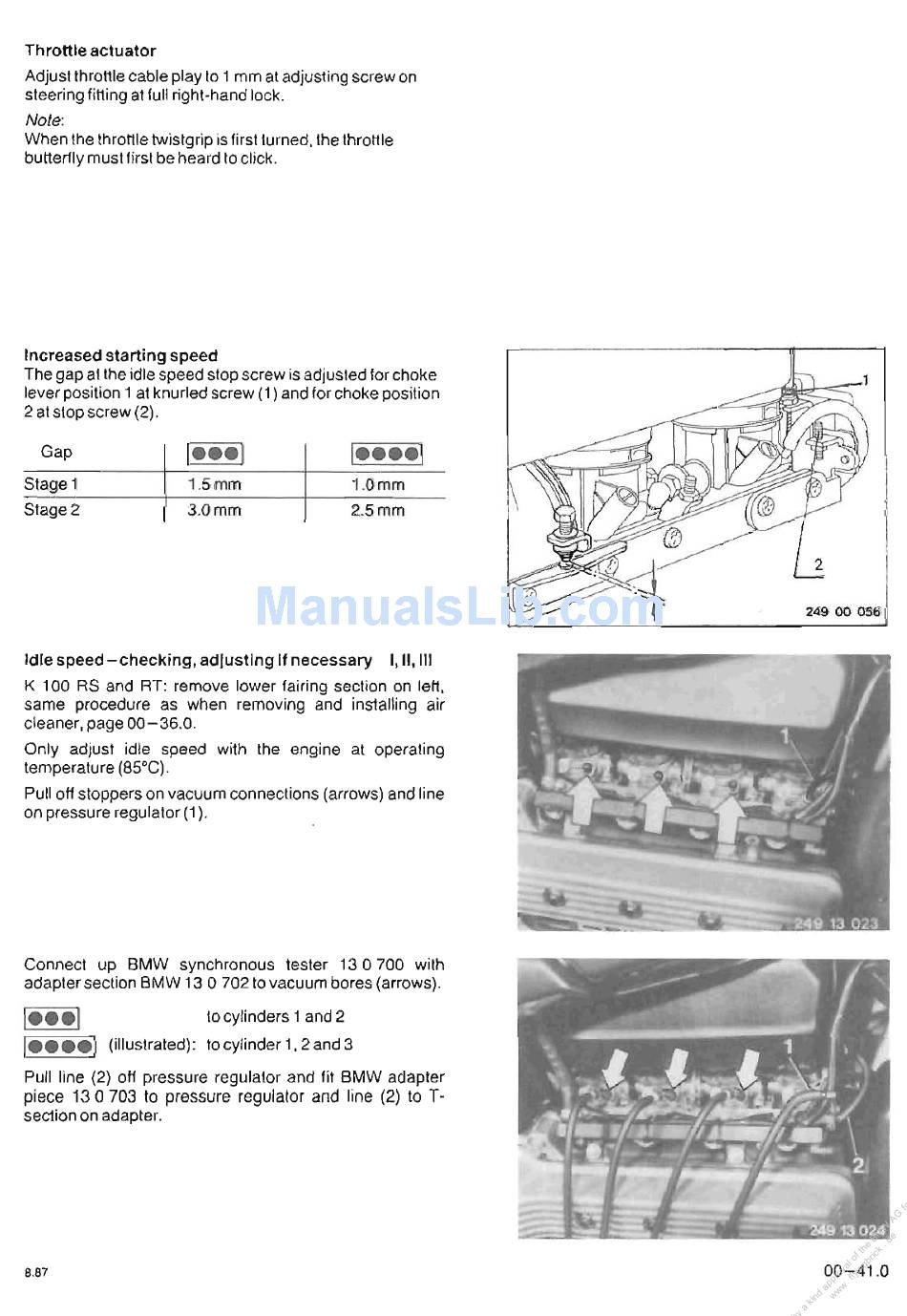

Throttle actuator
Adjust throttle cable play to 1 mm at adjusting screw on
steering fitting at full right-hand lock.
Note:
When the throttle twistgrip is first turned, the throttle
butterfly must first be heard to cl ick.
Increased starting speed
The gap at the idle speed stop screw is adjusted for choke
lever position 1 at knurled screw (1) and for choke position
2 at stop screw (2).
Gap
1 • • • 1
1 • • • • 1
Stage 1 1.5mm 1.0mm
Stage 2 3.Omm 2.5mm
Idle speed -checking, adjusting if necessary 1,11,111
K 100 RS and RT: remove lower fairing section on left,
same procedure as when removing and installing air
cleaner, page 00 - 36.0.
On ly adjust idle speed with the engine at operating
temperature (85°C).
Pull off stoppers on vacuum connections (arrows) and line
on pressure regu lator (1).
Connect up BMW synchronous tester 13 0 700 with
adaptersection BMW 130 702to vacuum bores (arrows).
I . . el
to cylinders 1 and 2
i _ ..
1 • • • • 1
(i llustrated) : to cylinder 1, 2 and 3
Pu ll line (2) off pressure regulator and fit BMW adapter
piece 130703 to pressu re regulator and line (2) to T-
section on adapter.
8.87
i \
L
24900056
00-41.0
