K 100 RT

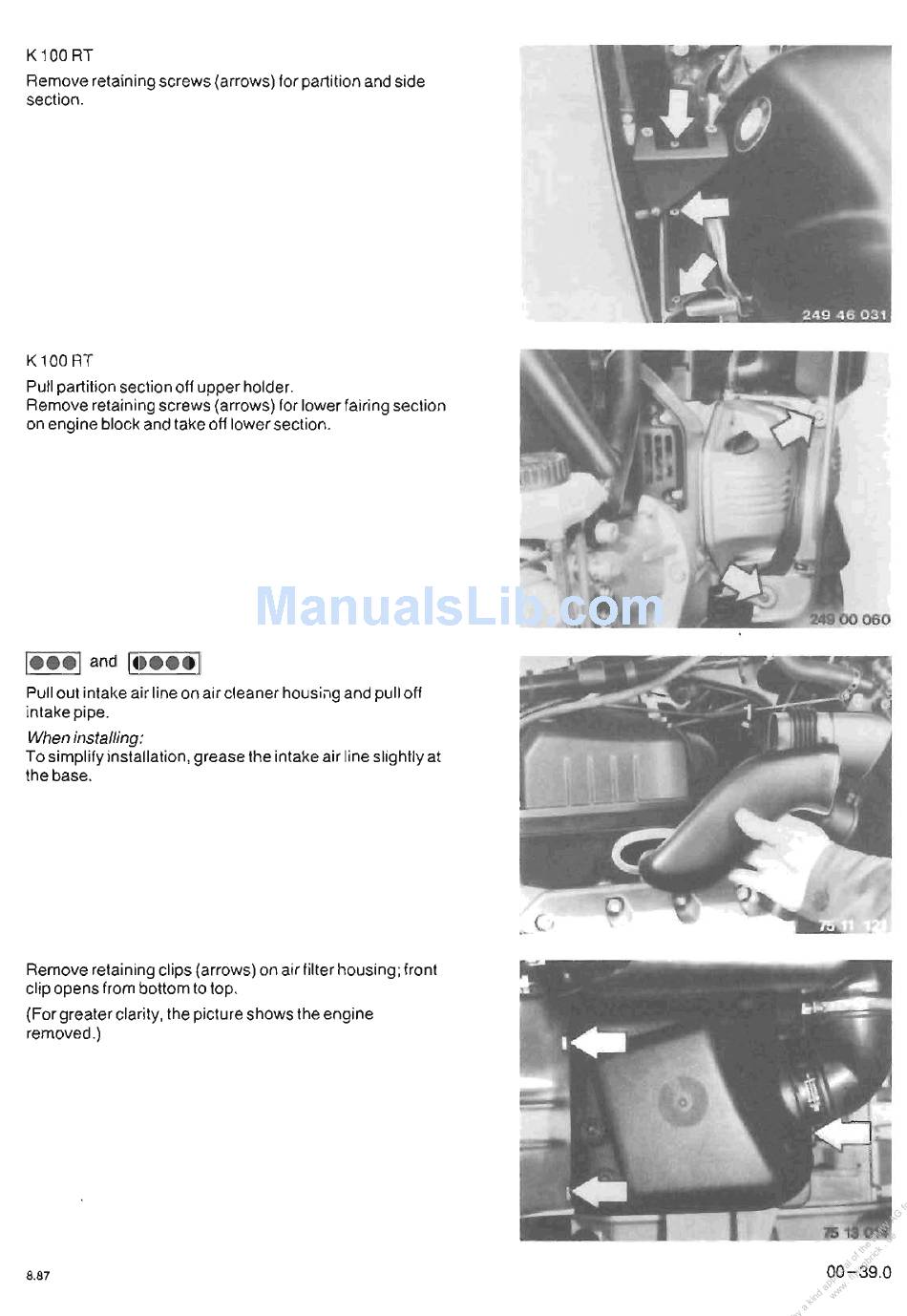

Remove retaining screws (arrows) for partition and side
section.
K 100 RT
Pull partition section off upper holder.
Remove retaining screws (arrows) for lowerfairing section
on engine block and take off lower section.
1 • • • 1
and
1 • • • • 1
Pull out intake air line on air cleaner housiilg and pull off
i ntake pi pe.
When installing:
To simplify installation, grease the intake air line slightly at
the base.
Remove retaining clips (arrows) on air filter housing ; front
clip opens from bottom to top.
(For greater clarity, the picture shows the engine
removed.)
8.87
00-39.0
