Clearing A Dtmf Memory; Transmitting A Dtmf Code Directly - Icom IC-E92D Instruction Manual

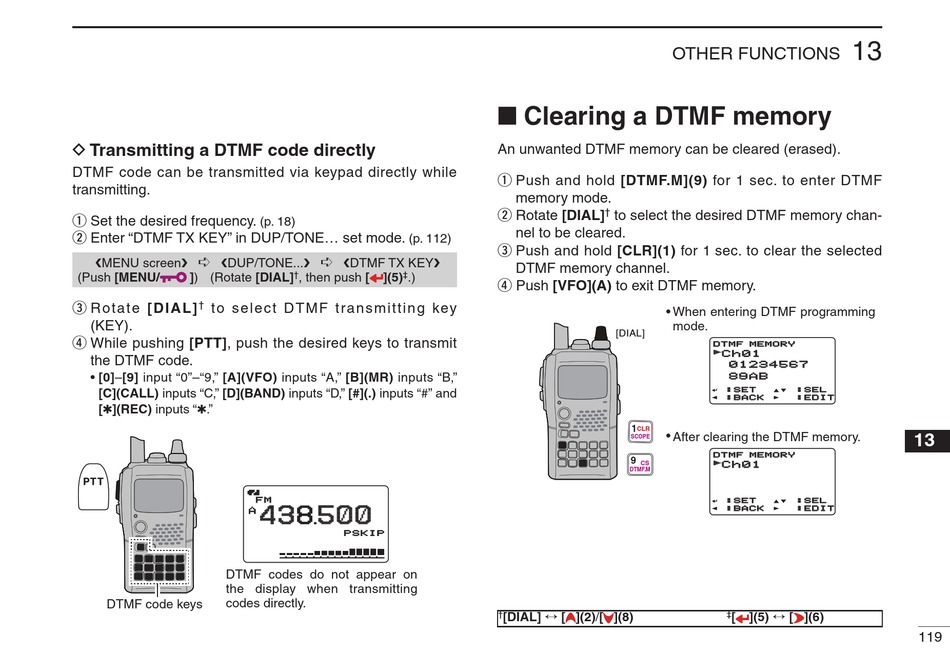

D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency.
w Enter "DTMF TX KEY" in DUP/TONE... set mode.
➪
❮MENU screen❯ ❮DUP/TONE...❯
(Push [MENU/ ]) (Rotate [DIAL]
e Rotate [DIAL]
†
to select DTMF transmitting key
(KEY).
r While pushing [PTT], push the desired keys to transmit
the DTMF code.
• [0]–[9] input "0"–"9," [A](VFO) inputs "A," [B](MR) inputs "B,"
[C](CALL) inputs "C," [D](BAND) inputs "D," [#](.) inputs "#" and
[✱](REC) inputs "✱."
A
DTMF codes do not appear on
the display when transmitting
codes directly.
DTMF code keys
(p. 18)
(p. 112)
+DUP DTCS
FM PRIO WX EMR
438 500
➪
❮DTMF TX KEY❯
A
† ‡
, then push [ ](5) .)
MemoName
PSKIP
µ 000
5D28AB4
FM FM
438 500 43 500
PSKI PSKIP
OTHER FUNCTIONS

■ Clearing a DTMF memory

An unwanted DTMF memory can be cleared (erased).
q Push and hold [DTMF.M](9) for 1 sec. to enter DTMF
memory mode.
w Rotate [DIAL]
†
to select the desired DTMF memory chan-
nel to be cleared.
e Push and hold [CLR](1) for 1 sec. to clear the selected
DTMF memory channel.
r Push [VFO](A) to exit DTMF memory.
• When entering DTMF programming
mode.
[DIAL]
1
CLR
•
After clearing the DTMF memory.
SCOPE
9
CS
DTMF.M
[DIAL] ↔ [ ](2)/[ ](8)
†
13
DTMF MEMORY DTMF MEMORY
r
Ch01 Ch01
01234567 01234567
89AB 89AB
:SET :SET :SEL :SEL
:BACK :BACK :EDIT :EDIT
DTMF MEMORY DTMF MEMORY
r
Ch01 Ch01
:SET :SET :SEL :SEL
:BACK :BACK :EDIT :EDIT
](5) ↔ [ ](6)
‡
[
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
119
