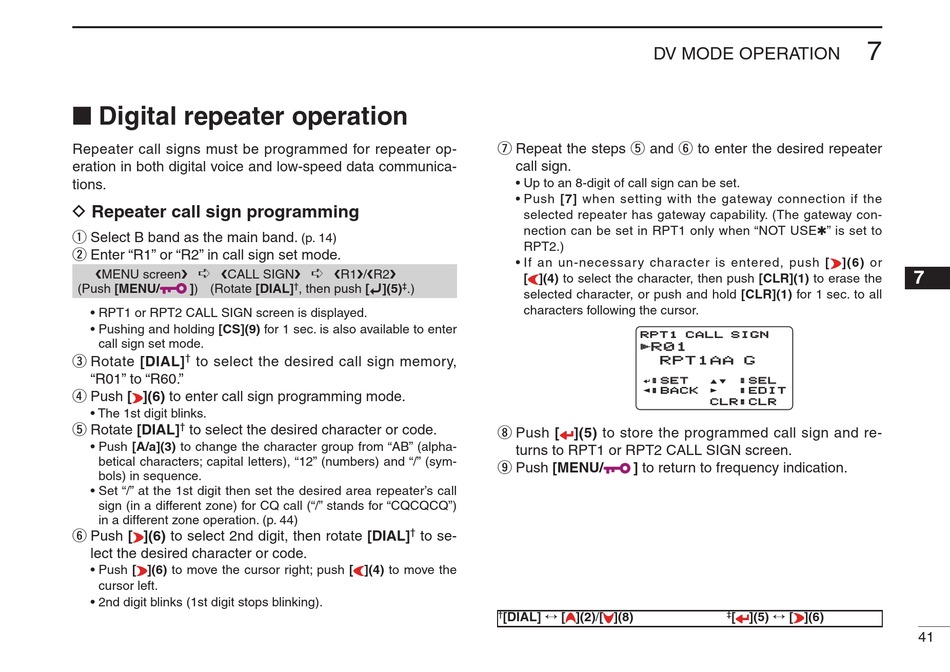

■ Digital repeater operation

Repeater call signs must be programmed for repeater op-
eration in both digital voice and low-speed data communica-
tions.
D Repeater call sign programming
q Select B band as the main band.
w Enter "R1" or "R2" in call sign set mode.
➪
❮MENU screen❯ ❮CALL SIGN❯
(Push [MENU/ ]) (Rotate [DIAL]
• RPT1 or RPT2 CALL SIGN screen is displayed.
• Pushing and holding [CS](9) for 1 sec. is also available to enter
call sign set mode.
e Rotate [DIAL]
†
to select the desired call sign memory,
"R01" to "R60."
r Push [ ](6) to enter call sign programming mode.
• The 1st digit blinks.
t Rotate [DIAL]
†
to select the desired character or code.
• Push [A/a](3) to change the character group from "AB" (alpha-
betical characters; capital letters), "12" (numbers) and "/" (sym-
bols) in sequence.
• Set "/" at the 1st digit then set the desired area repeater's call
sign (in a different zone) for CQ call ("/" stands for "CQCQCQ")
in a different zone operation. (p. 44)
y Push [ ](6) to select 2nd digit, then rotate [DIAL]
lect the desired character or code.
• Push [ ](6) to move the cursor right; push [ ](4) to move the
cursor left.
• 2nd digit blinks (1st digit stops blinking).
(p. 14)
➪
❮R1❯/❮R2❯
† ‡
, then push [ï](5) .)
†
to se-
DV MODE OPERATION
u Repeat the steps t and y to enter the desired repeater
call sign.
• Up to an 8-digit of call sign can be set.
• Push [7] when setting with the gateway connection if the
selected repeater has gateway capability. (The gateway con-
nection can be set in RPT1 only when "NOT USE✱" is set to
RPT2.)
• If an un-necessary character is entered, push [ ](6) or
[ ](4) to select the character, then push [CLR](1) to erase the
selected character, or push and hold [CLR](1) for 1 sec. to all
characters following the cursor.
RPT1 CALL SIGN RPT1 CALL SIGN
r
R01 R01
RPT1AA G RPT1AA G
:SET :SET
:BACK :BACK
i Push [ ](5) to store the programmed call sign and re-
turns to RPT1 or RPT2 CALL SIGN screen.
o Push [MENU/
] to return to frequency indication.
[DIAL] ↔ [ ](2)/[ ](8)
†
7
:SEL :SEL
:EDIT :EDIT
CLR:CLR CLR:CLR
](5) ↔ [ ](6)
‡
[
