NOTE: Set the GSV sentence to OFF when sending the
GPS message to conventional digital transceivers
(IC-E2820, IC-E91, IC-V82, IC-U82).
The GSV sentence is incompatible with them.
Those transceivers will not display GPS messages
properly if sent as a GSV sentence from the IC-
E92D.

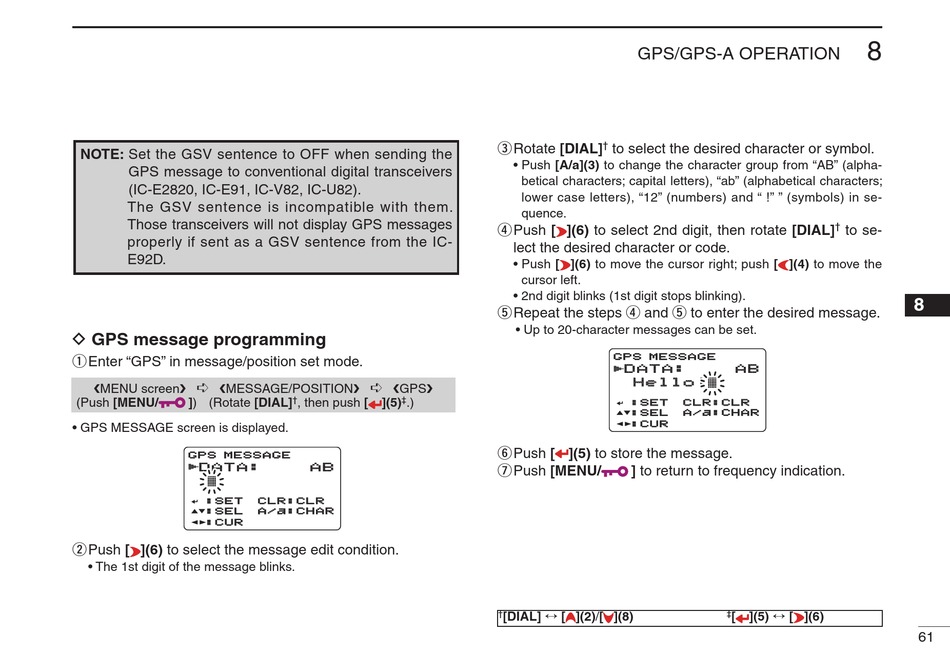

D GPS message programming

q Enter "GPS" in message/position set mode.
➪
❮MENU screen❯ ❮MESSAGE/POSITION❯
(Push [MENU/ ]) (Rotate [DIAL]
• GPS MESSAGE screen is displayed.
GPS MESSAGE GPS MESSAGE
r DATA: DATA:
†
:SET :SET
:SEL :SEL
:CUR :CUR
w Push [ ](6) to select the message edit condition.
• The 1st digit of the message blinks.
➪
❮GPS❯
† ‡
, then push [ ](5) .)
AB AB
CLR:CLR CLR:CLR
A/a:CHAR A/a:CHAR
GPS/GPS-A OPERATION
e Rotate [DIAL]
†
to select the desired character or symbol.
• Push [A/a](3) to change the character group from "AB" (alpha-
betical characters; capital letters), "ab" (alphabetical characters;
lower case letters), "12" (numbers) and " !" " (symbols) in se-
quence.
r Push [ ](6) to select 2nd digit, then rotate [DIAL]
lect the desired character or code.
• Push [ ](6) to move the cursor right; push [ ](4) to move the
cursor left.
• 2nd digit blinks (1st digit stops blinking).
t Repeat the steps r and t to enter the desired message.
• Up to 20-character messages can be set.
GPS MESSAGE GPS MESSAGE
r
DATA: DATA:
Hello!† Hello!
:SET :SET
:SEL :SEL
:CUR :CUR
y Push [ ](5) to store the message.
u Push [MENU/
] to return to frequency indication.
[DIAL] ↔ [ ](2)/[ ](8)
†
†
to se-
AB AB
CLR:CLR CLR:CLR
A/a:CHAR A/a:CHAR
](5) ↔ [ ](6)
‡
[
