REPEATER AND DUPLEX OPERATIONS

■ General

Repeaters allow you to extend the operational range of your
radio because a repeater has much higher output power
than the typical transceiver.
Normally, a repeater has independent frequencies for each
receiver and transmitter.
A subaudible tone may also be required to access a re-
peater.
Reference amateur radio hand books and local ham maga-
zines for details of local repeaters such as repeater input/
output frequencies and locations.

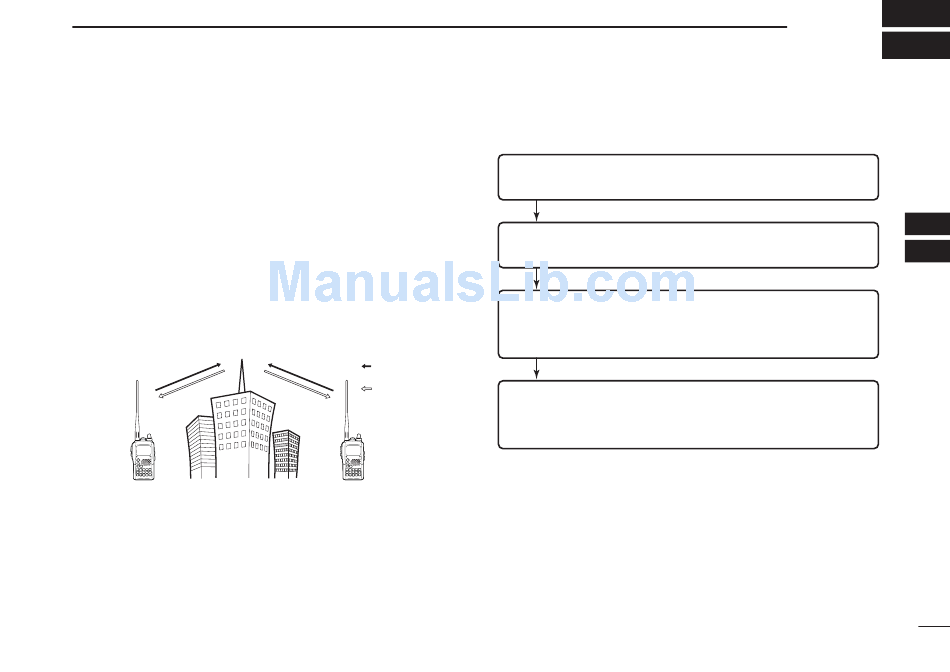

Repeater
144.700 MHz
145.300 MHz
Station A
Uplink
144.700 MHz
(transmitting freq.)
Downlink
(receiving freq.)
145.300 MHz
Station B
• Repeater operation fl ow chart
Step 1:
Set the desired band to operate the repeater.
Step 2:
Set the desired receive frequency (repeater output frequency).
Step 3:
Set the duplex (shifting) direction (– duplex or +duplex).
- Set the offset frequency (shifting value), if required.
Step 4:
Set the subaudible tone (repeater tone) encoder function ON.
- Set the subaudible tone frequency, if required.
• Repeater settings can be stored into a memory channel.
