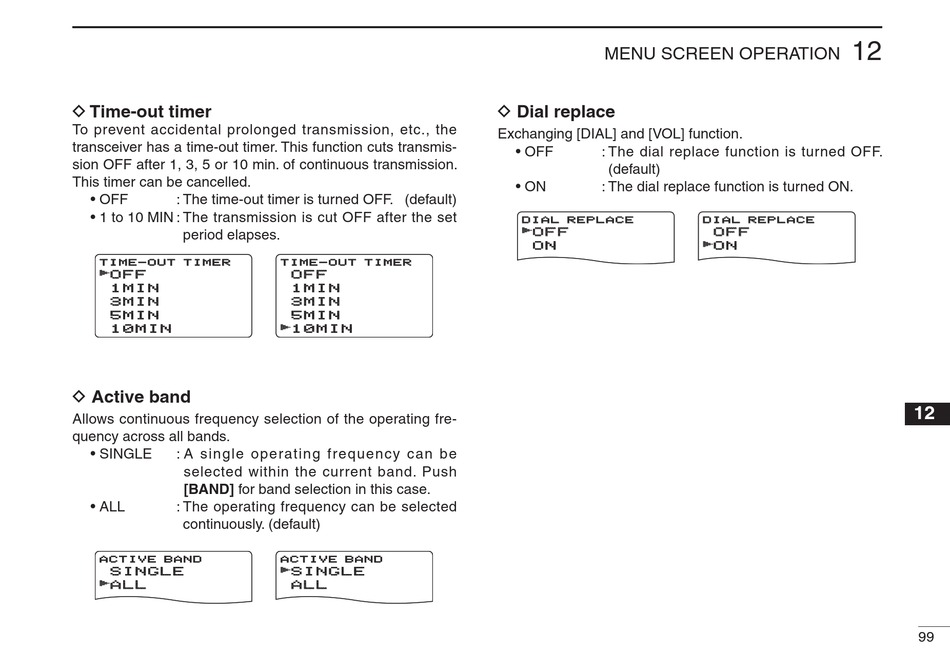

Icom IC-E92D Instruction Manual page 107

D Time-out timer
To prevent accidental prolonged transmission, etc., the
transceiver has a time-out timer. This function cuts transmis-
sion OFF after 1, 3, 5 or 10 min. of continuous transmission.
This timer can be cancelled.
• OFF : The time-out timer is turned OFF. (default)
• 1 to 10 MIN : The transmission is cut OFF after the set
period elapses.
TIME-OUT TIMER TIME-OUT TIMER
r
OFF OFF
1MIN 1MIN
3MIN 3MIN
5MIN 5MIN
10MIN 10MIN
D Active band
Allows continuous frequency selection of the operating fre-
quency across all bands.
• SINGLE : A single operating frequency can be
selected within the current band. Push
[BAND] for band selection in this case.
• ALL : The operating frequency can be selected
continuously. (default)
ACTIVE BAND ACTIVE BAND
SINGLE SINGLE
r
ALL ALL
TIME-OUT TIMER TIME-OUT TIMER
OFF OFF
1MIN 1MIN
3MIN 3MIN
5MIN 5MIN
r
10MIN 10MIN
ACTIVE BAND ACTIVE BAND
r
SINGLE SINGLE
ALL ALL
MENU SCREEN OPERATION
D Dial replace
Exchanging [DIAL] and [VOL] function.
• OFF : The dial replace function is turned OFF.
(default)
• ON : The dial replace function is turned ON.
DIAL REPLACE DIAL REPLACE
r
OFF OFF
ON ON
12
DIAL REPLACE DIAL REPLACE
OFF OFF
r
ON ON
