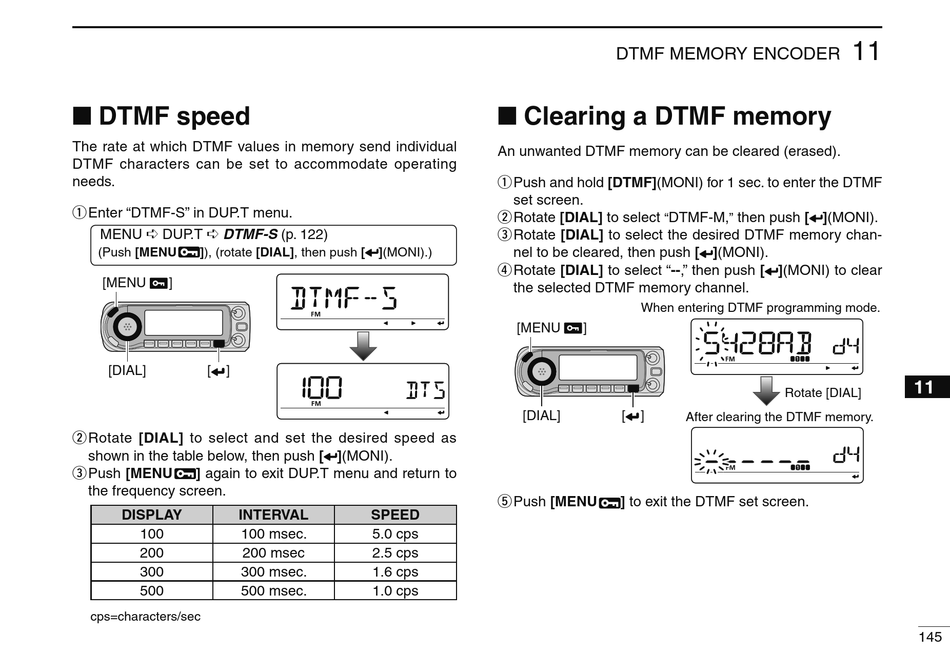

DTMF speed

The rate at which DTMF values in memory send individual
DTMF characters can be set to accommodate operating
needs.
q Enter "DTMF-S" in DUP.T menu.
MENU DUP.T DTMF-S (p. 122)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
[MENU ]
[DIAL] [ ]
w Rotate [DIAL] to select and set the desired speed as
shown in the table below, then push [ ](MONI).
e Push [MENU
] again to exit DUP.T menu and return to
the frequency screen.
DISPLAY INTERVAL
100 100 msec.
200 200 msec
300 300 msec.
500 500 msec.
cps=characters/sec

Clearing a DTMF memory

An unwanted DTMF memory can be cleared (erased).
q Push and hold [DTMF](MONI) for 1 sec. to enter the DTMF
set screen.
w Rotate [DIAL] to select
e Rotate [DIAL] to select the desired DTMF memory chan-
nel to be cleared, then push [ ](MONI).
r Rotate [DIAL] to select "--," then push [ ](MONI) to clear
the selected DTMF memory channel.
[MENU
[DIAL]
t Push [MENU
SPEED
5.0 cps
2.5 cps
1.6 cps
1.0 cps
DTMF MEMORY ENCODER
DTMF-M, then push [ ](MONI).
" "
When entering DTMF programming mode.
]
[ ]
After clearing the DTMF memory.
] to exit the DTMF set screen.
