12

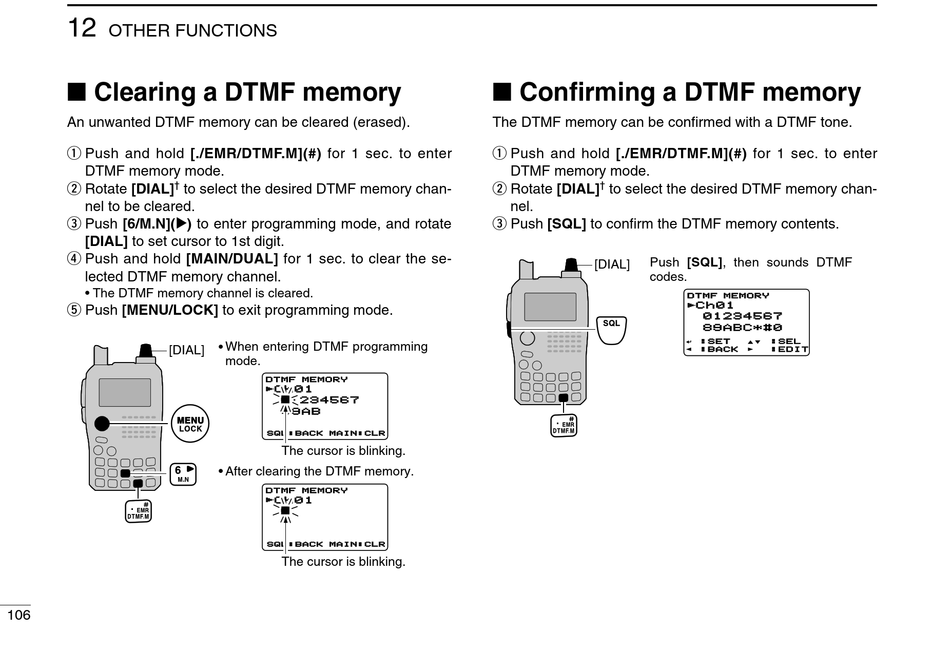

OTHER FUNCTIONS

I Clearing a DTMF memory

An unwanted DTMF memory can be cleared (erased).
q Push and hold [./EMR/DTMF.M](#) for 1 sec. to enter
DTMF memory mode.
w Rotate [DIAL] †
to select the desired DTMF memory chan-
nel to be cleared.
e Push [6/M.N](≈ ≈ ) to enter programming mode, and rotate
[DIAL] to set cursor to 1st digit.
r Push and hold [MAIN/DUAL] for 1 sec. to clear the se-
lected DTMF memory channel.
• The DTMF memory channel is cleared.
t Push [MENU/LOCK] to exit programming mode.
[DIAL]
106
When entering DTMF programming
•
mode.
DTMF MEMORY
Ch01 Ch01
r
6 1234567
1234567
89AB 89AB
SQL:BACK SQL:BACK MAIN:CLR MAIN:CLR
The cursor is blinking.
• After clearing the DTMF memory.
DTMF MEMORY
Ch01 Ch01
r
6
SQL:BACK SQL:BACK MAIN:CLR MAIN:CLR
The cursor is blinking.
I Confirming a DTMF memory
The DTMF memory can be confirmed with a DTMF tone.
q Push and hold [./EMR/DTMF.M](#) for 1 sec. to enter
DTMF memory mode.
w Rotate [DIAL] †
to select the desired DTMF memory chan-
nel.
e Push [SQL] to confirm the DTMF memory contents.
Push [SQL], then sounds DTMF
[DIAL]
codes.
SQL:BACK MAIN:CLR
DTMF MEMORY
Ch01
6
SQL:BACK MAIN:CLR
DTMF MEMORY
Ch01 Ch01
r
01234567 01234567
89ABC*#0 89ABC*#0
:SET :SEL
:BACK :EDIT
