7
DV MODE OPERATION

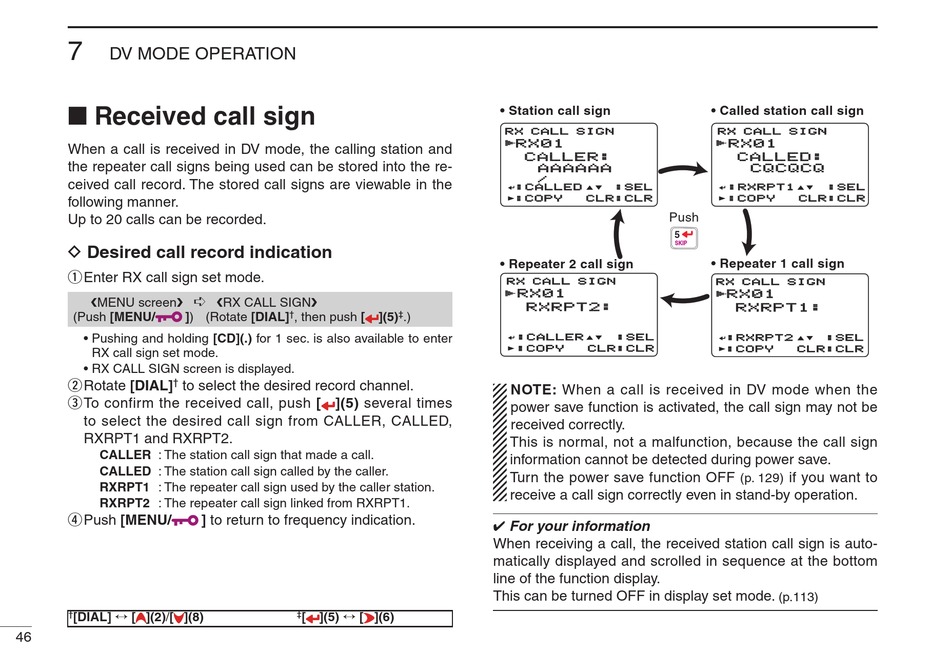

■ Received call sign

When a call is received in DV mode, the calling station and
the repeater call signs being used can be stored into the re-
ceived call record. The stored call signs are viewable in the
following manner.
Up to 20 calls can be recorded.
D Desired call record indication
q Enter RX call sign set mode.
➪
❮MENU screen❯
(Push [MENU/ ]) (Rotate [DIAL]
• Pushing and holding [CD](.) for 1 sec. is also available to enter
RX call sign set mode.
• RX CALL SIGN screen is displayed.
w Rotate [DIAL]
†
to select the desired record channel.
e To confirm the received call, push [ ](5) several times
to select the desired call sign from CALLER, CALLED,
RXRPT1 and RXRPT2.
CALLER : The station call sign that made a call.
CALLED : The station call sign called by the caller.
RXRPT1 : The repeater call sign used by the caller station.
RXRPT2 : The repeater call sign linked from RXRPT1.
r Push [MENU/
[DIAL] ↔ [ ](2)/[ ](8)
†
46
❮RX CALL SIGN❯
†
, then push [ ](5)
] to return to frequency indication.
](5) ↔ [ ](6)
‡
[
• Station call sign
RX CALL SIGN RX CALL SIGN
r RX01 RX01
CALLER: CALLER:
AAAAAA AAAAAA
/ /
:CALLED :CALLED
:COPY :COPY
• Repeater 2 call sign
RX CALL SIGN RX CALL SIGN
r RX01 RX01
RXRPT2: RXRPT2:
‡
.)
:CALLER :CALLER
:COPY :COPY
NOTE: When a call is received in DV mode when the
power save function is activated, the call sign may not be
received correctly.
This is normal, not a malfunction, because the call sign
information cannot be detected during power save.
Turn the power save function OFF
receive a call sign correctly even in stand-by operation.
✔ For your information
When receiving a call, the received station call sign is auto-
matically displayed and scrolled in sequence at the bottom
line of the function display.
This can be turned OFF in display set mode.
• Called station call sign
RX CALL SIGN RX CALL SIGN
r RX01 RX01
CALLED: CALLED:
CQCQCQ CQCQCQ
:SEL :SEL :RXRPT1 :RXRPT1
CLR:CLR CLR:CLR :COPY :COPY
Push
5
SKIP
• Repeater 1 call sign
RX CALL SIGN RX CALL SIGN
r
RX01 RX01
RXRPT1: RXRPT1:
:SEL :SEL :RXRPT2 :RXRPT2
CLR:CLR CLR:CLR
:COPY :COPY
(p. 129)
:SEL :SEL
CLR:CLR CLR:CLR
:SEL :SEL
CLR:CLR CLR:CLR
if you want to
(p.113)
