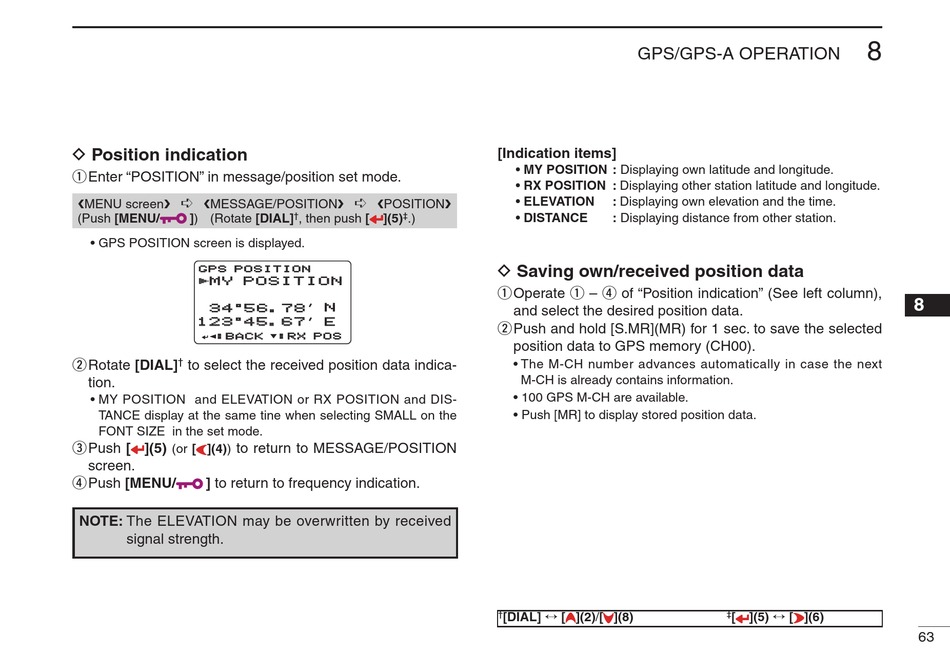

Position Indication; Saving Own/Received Position Data - Icom IC-E92D Instruction Manual

D Position indication
q Enter "POSITION" in message/position set mode.
➪
❮MENU screen❯ ❮MESSAGE/POSITION❯
(Push [MENU/ ]) (Rotate [DIAL]
• GPS POSITION screen is displayed.
GPS POSITION GPS POSITION
r
MY POSITION MY POSITION
°
34 34 56.78 56.78
°
123 123 45.67 45.67
:BACK :BACK
w Rotate [DIAL]
†
to select the received position data indica-
tion.
• MY POSITION and ELEVATION or RX POSITION and DIS-
TANCE display at the same tine when selecting SMALL on the
FONT SIZE in the set mode.
e Push [ ](5)
to return to MESSAGE/POSITION
(or [ ](4))
screen.
r Push [MENU/
] to return to frequency indication.
NOTE: The ELEVATION may be overwritten by received
signal strength.
➪
❮POSITION❯
† ‡
, then push [ ](5) .)
N
E
:RX POS :RX POS
GPS/GPS-A OPERATION
[Indication items]
• MY POSITION : Displaying own latitude and longitude.
• RX POSITION : Displaying other station latitude and longitude.
• ELEVATION : Displaying own elevation and the time.
• DISTANCE : Displaying distance from other station.
D Saving own/received position data
q Operate q – r of "Position indication" (See left column),
and select the desired position data.
w Push and hold [S.MR](MR) for 1 sec. to save the selected
position data to GPS memory (CH00).
• The M-CH number advances automatically in case the next
M-CH is already contains information.
• 100 GPS M-CH are available.
• Push [MR] to display stored position data.
[DIAL] ↔ [ ](2)/[ ](8)
†
