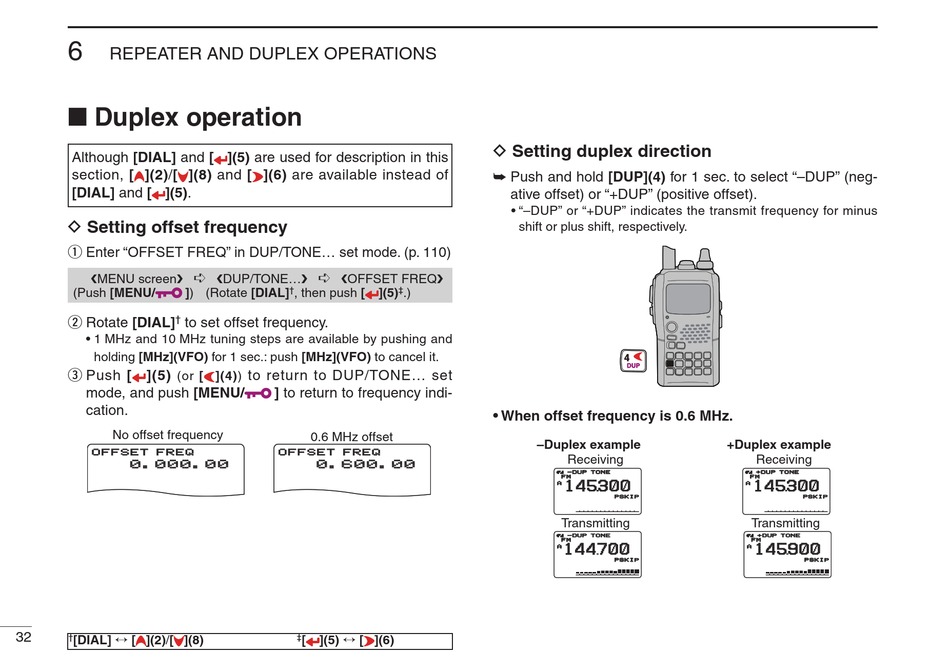

REPEATER AND DUPLEX OPERATIONS

■ Duplex operation

Although [DIAL] and [ ](5) are used for description in this
section, [ ](2)/[ ](8) and [ ](6) are available instead of
[DIAL] and [ ](5).
D Setting offset frequency
q Enter "OFFSET FREQ" in DUP/TONE... set mode. (p. 110)
➪
❮MENU screen❯
(Push [MENU/ ]) (Rotate [DIAL]
w Rotate [DIAL]
†
to set offset frequency.
• 1 MHz and 10 MHz tuning steps are available by pushing and
holding [MHz](VFO) for 1 sec.: push [MHz](VFO) to cancel it.
e Push [ ](5)
(or [ ](4))
mode, and push [MENU/
cation.
No offset frequency
OFFSET FREQ OFFSET FREQ
0.000.00 0.000.00
32
[DIAL] ↔ [ ](2)/[ ](8)
†
➪
❮DUP/TONE...❯ ❮OFFSET FREQ❯
†
, then push [ ](5)
to return to DUP/TONE... set
] to return to frequency indi-
0.6 MHz offset
OFFSET FREQ OFFSET FREQ
0.600.00 0.600.00
](5) ↔ [ ](6)
‡
[
D Setting duplex direction
➥ Push and hold [DUP](4) for 1 sec. to select "–DUP" (neg-
ative offset) or "+DUP" (positive offset).
• "–DUP" or "+DUP" indicates the transmit frequency for minus
shift or plus shift, respectively.
‡
.)
• When offset frequency is 0.6 MHz.
–Duplex example
Receiving
-DUP -DUP
FM FM
145300 145300
A A
Transmitting
-DUP -DUP
FM FM
144700 144700
A
4
DUP
+Duplex example
Receiving
TONE TONE +DUP +DUP
FM FM
145300 145300
A
PSKI PSKIP
Transmitting
TONE TONE +DUP +DUP
FM FM
145900 145900
A
PSKIP PSKI
TONE TONE
PSKIP PSKI
TONE TONE
PSKIP PSKI
