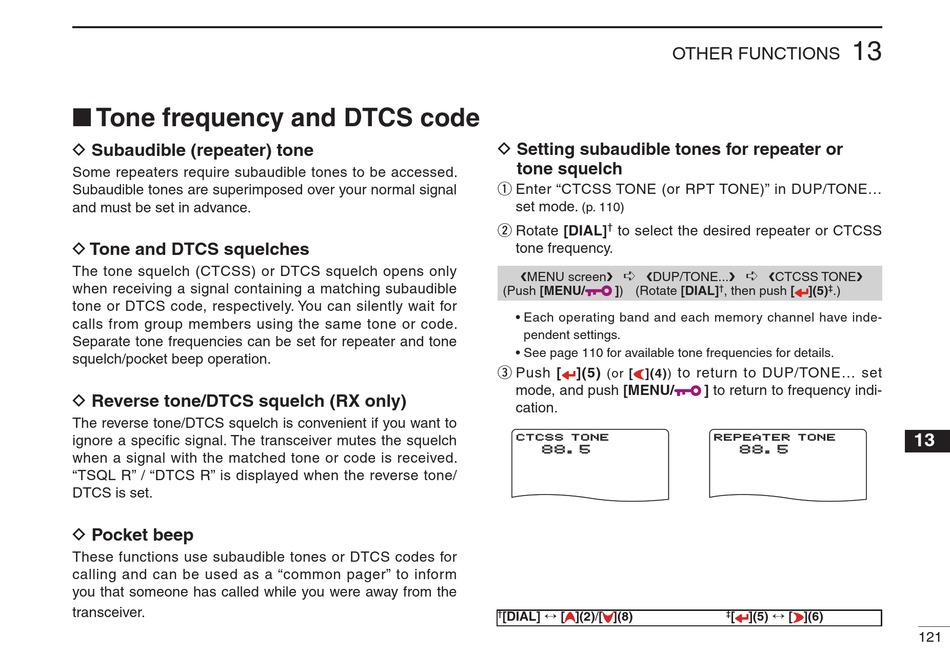

■ Tone frequency and DTCS code

D Subaudible (repeater) tone
Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your normal signal
and must be set in advance.
D Tone and DTCS squelches
The tone squelch (CTCSS) or DTCS squelch opens only
when receiving a signal containing a matching subaudible
tone or DTCS code, respectively. You can silently wait for
calls from group members using the same tone or code.
Separate tone frequencies can be set for repeater and tone
squelch/pocket beep operation.
D Reverse tone/DTCS squelch (RX only)
The reverse tone/DTCS squelch is convenient if you want to
ignore a specific signal. The transceiver mutes the squelch
when a signal with the matched tone or code is received.
"TSQL R" / "DTCS R" is displayed when the reverse tone/
DTCS is set.
D Pocket beep
These functions use subaudible tones or DTCS codes for
calling and can be used as a "common pager" to inform
you that someone has called while you were away from the
transceiver.
OTHER FUNCTIONS
D Setting subaudible tones for repeater or
tone squelch
q Enter "CTCSS TONE (or RPT TONE)" in DUP/TONE...
set mode.
(p. 110)
w Rotate [DIAL]
†
to select the desired repeater or CTCSS
tone frequency.
➪
❮MENU screen❯ ❮DUP/TONE...❯
(Push [MENU/ ]) (Rotate [DIAL]
• Each operating band and each memory channel have inde-
pendent settings.
• See page 110 for available tone frequencies for details.
***** MENU *****
e Push [ ](5)
DV SET MODE
(or [ ](4))
SCAN
mode, and push [MENU/
r DUP/TONE...
cation.
CTCSS TONE CTCSS TONE
88.5 88.5
200 200
r 300 300
500 500
***** MENU *****
DV SET MODE
SCAN
r
DUP/TONE...
[DIAL] ↔ [ ](2)/[ ](8)
†
DTCS CODE
023
13
➪
❮CTCSS TONE❯
† ‡
, then push [ ](5) .)
to return to DUP/TONE... set
] to return to frequency indi-
REPEATER TONE REPEATER TONE
88.5 88.5
200 200
r 300 300
500 500
](5) ↔ [ ](6)
‡
[
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
121
