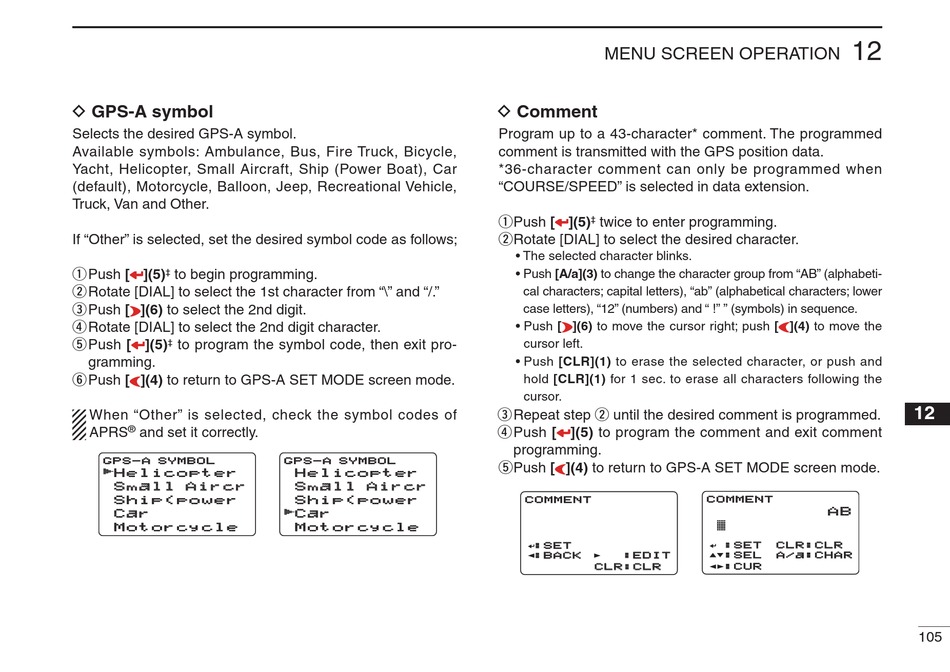

D GPS-A symbol
Selects the desired GPS-A symbol.
Available symbols: Ambulance, Bus, Fire Truck, Bicycle,
Yacht, Helicopter, Small Aircraft, Ship (Power Boat), Car
(default), Motorcycle, Balloon, Jeep, Recreational Vehicle,
Truck, Van and Other.
If "Other" is selected, set the desired symbol code as follows;
q Push [ ](5)
‡ to begin programming.
w Rotate [DIAL] to select the 1st character from "\" and "/."
e Push [ ](6) to select the 2nd digit.
r Rotate [DIAL] to select the 2nd digit character.
t Push [ ](5)
‡ to program the symbol code, then exit pro-
gramming.
y Push [ ](4) to return to GPS-A SET MODE screen mode.
When "Other" is selected, check the symbol codes of
®
APRS and set it correctly.
GPS-A SYMBOL GPS-A SYMBOL
r
Helicopter Helicopter
Small Aircr Small Aircr
Ship(power Ship(power
Car Car
Motorcycle Motorcycle
GPS-A SYMBOL GPS-A SYMBOL
Helicopter Helicopter
Small Aircr Small Aircr
Ship(power Ship(power
r
Car Car
Motorcycle Motorcycle
MENU SCREEN OPERATION
D Comment
Program up to a 43-character* comment. The programmed
comment is transmitted with the GPS position data.
*36-character comment can only be programmed when
"COURSE/SPEED" is selected in data extension.
q Push [ ](5)
‡ twice to enter programming.
w Rotate [DIAL] to select the desired character.
• The selected character blinks.
• Push [A/a](3) to change the character group from "AB" (alphabeti-
cal characters; capital letters), "ab" (alphabetical characters; lower
case letters), "12" (numbers) and " !" " (symbols) in sequence.
• Push [ ](6) to move the cursor right; push [ ](4) to move the
cursor left.
• Push [CLR](1) to erase the selected character, or push and
hold [CLR](1) for 1 sec. to erase all characters following the
cursor.
e Repeat step w until the desired comment is programmed.
r Push [ ](5) to program the comment and exit comment
programming.
t Push [ ](4) to return to GPS-A SET MODE screen mode.
COMMENT COMMENT
:SET :SET
:BACK :BACK :EDIT :EDIT
CLR:CLR CLR:CLR
12
COMMENT COMMENT
AB AB
†
:SET :SET CLR:CLR CLR:CLR
:SEL :SEL A/a:CHAR A/a:CHAR
:CUR :CUR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
105
