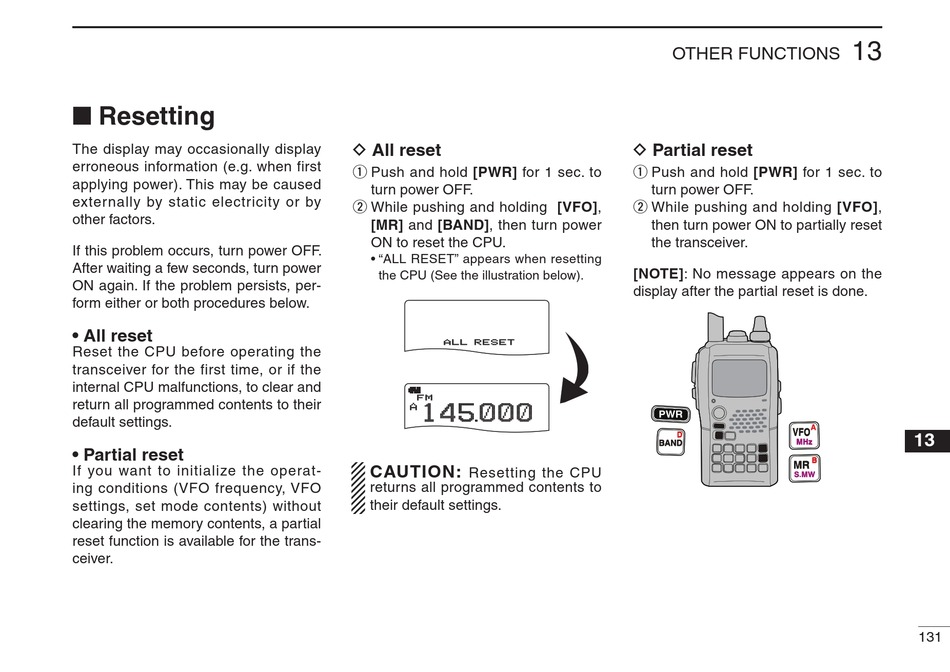

■ Resetting

The display may occasionally display
erroneous information (e.g. when first
applying power). This may be caused
externally by static electricity or by
other factors.
If this problem occurs, turn power OFF.
After waiting a few seconds, turn power
ON again. If the problem persists, per-
form either or both procedures below.

• All reset

Reset the CPU before operating the
transceiver for the first time, or if the
internal CPU malfunctions, to clear and
return all programmed contents to their
default settings.

• Partial reset

If you want to initialize the operat-
ing conditions (VFO frequency, VFO
settings, set mode contents) without
clearing the memory contents, a partial
reset function is available for the trans-
ceiver.
D All reset
q Push and hold [PWR] for 1 sec. to
turn power OFF.
w While pushing and holding [VFO],
[MR] and [BAND], then turn power
ON to reset the CPU.
• "ALL RESET" appears when resetting
the CPU (See the illustration below).
ALL RESET ALL RESET
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
14 145 000 000
A
B
CAUTION:
Resetting the CPU
returns all programmed contents to
their default settings.
OTHER FUNCTIONS
D Partial reset
q Push and hold [PWR] for 1 sec. to
turn power OFF.
w While pushing and holding [VFO],
then turn power ON to partially reset
the transceiver.
[NOTE]: No message appears on the
display after the partial reset is done.
PWR
A
VFO
D
BAND MHz
B
MR
S.MW
ALL RESET
+DUP DTCS
FM PRIO WX EMR
145 000
A
B
