12
MENU SCREEN OPERATION

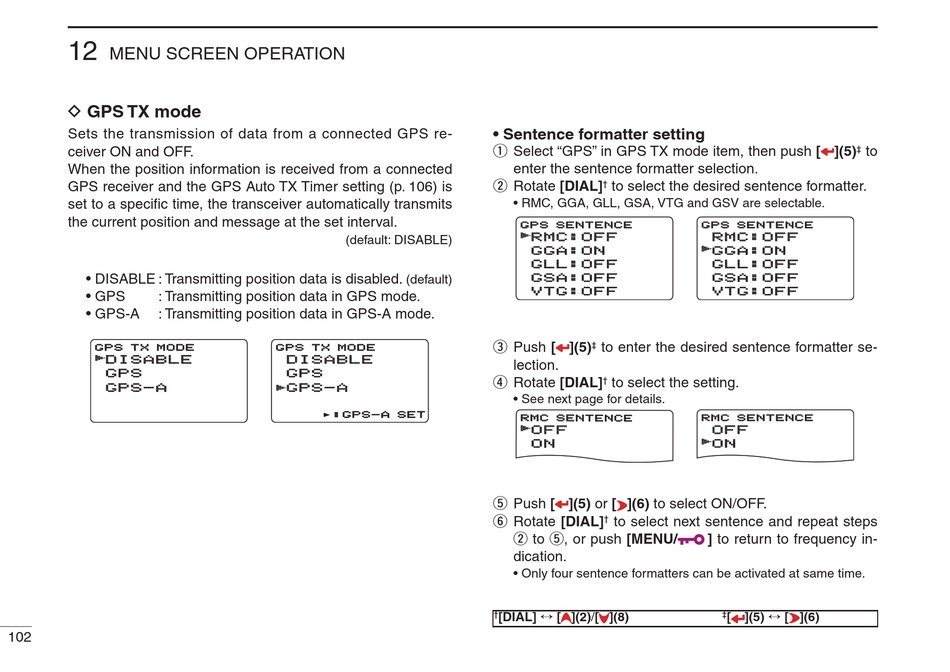

D GPS TX mode
Sets the transmission of data from a connected GPS re-
ceiver ON and OFF.
When the position information is received from a connected
GPS receiver and the GPS Auto TX Timer setting (p. 106) is
set to a specifi c time, the transceiver automatically transmits
the current position and message at the set interval.
• DISABLE : Transmitting position data is disabled.
• GPS : Transmitting position data in GPS mode.
• GPS-A : Transmitting position data in GPS-A mode.

GPS TX MODE

GPS TX MODE
r
DISABLE DISABLE
GPS GPS
GPS-A GPS-A
102
(default: DISABLE)
(default)
GPS TX MODE GPS TX MODE
DISABLE DISABLE
GPS GPS
r
GPS-A GPS-A
:GPS-A SET :GPS-A SET
• Sentence formatter setting
q Select "GPS" in GPS TX mode item, then push [ ](5)
enter the sentence formatter selection.
w Rotate [DIAL]
† to select the desired sentence formatter.
• RMC, GGA, GLL, GSA, VTG and GSV are selectable.
GPS SENTENCE GPS SENTENCE
r
RMC:OFF RMC:OFF
GGA:ON GGA:ON
GLL:OFF GLL:OFF
GSA:OFF GSA:OFF
VTG:OFF VTG:OFF
e Push [ ](5)
‡ to enter the desired sentence formatter se-
lection.
r Rotate [DIAL]
† to select the setting.
• See next page for details.
r
t Push [ ](5) or [ ](6) to select ON/OFF.
y Rotate [DIAL]
† to select next sentence and repeat steps
w to t, or push [MENU/
dication.
• Only four sentence formatters can be activated at same time.
[DIAL] ↔ [ ](2)/[ ](8)
†
‡ to
GPS SENTENCE GPS SENTENCE
RMC:OFF RMC:OFF
r
GGA:ON GGA:ON
GLL:OFF GLL:OFF
GSA:OFF GSA:OFF
VTG:OFF VTG:OFF
RMC SENTENCE RMC SENTENCE
OFF OFF
r
ON ON
] to return to frequency in-
](5) ↔ [ ](6)
‡
[
