• Setting example 1
Area 1 Repeater 1
: A11111
✔ What is the area?
The Area is the communication range that is
covered by a single repeater.
The repeater is called an area repeater in the
D-STAR system.
❑ The setting when Station A is call-
ing Station B
UR : A2222B
R1 : A22222
R2 : NOT USE✱
MY : A2222A
Zone
Area 2 Repeater 2
: A22222
Station A
Station B
: A2222A
Internet Internet Internet
: A2222B
network network network
to another Zone
❑ The setting when Station A is
making a CQ call in Area 1
UR : CQCQCQ
R1 : A22222
R2 : A11111
MY : A2222A
DV MODE OPERATION
Area 3 Repeater 3
(Gateway) : A33333

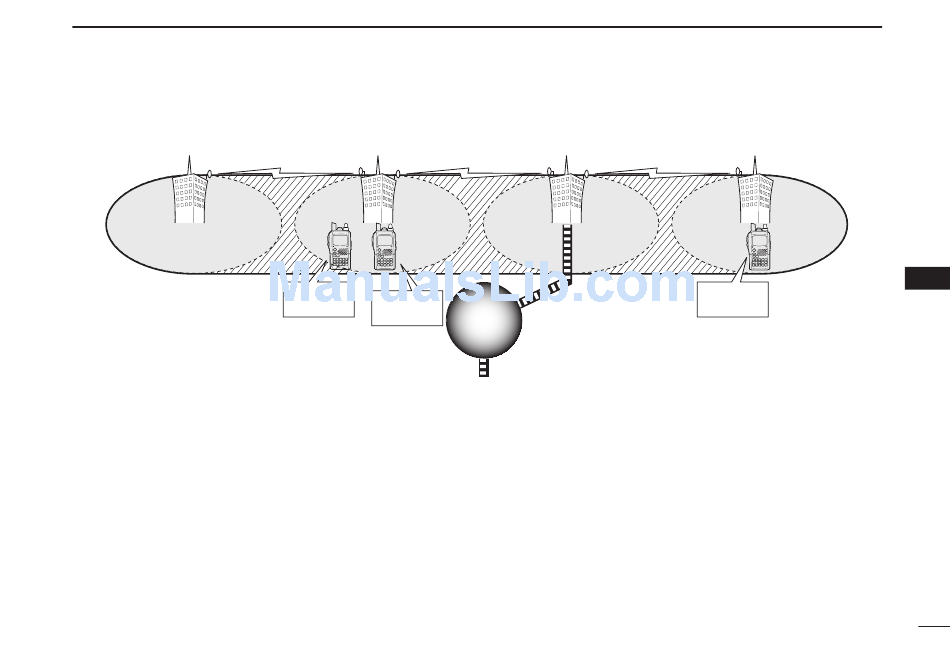

✔ What is the zone?
The Zone is composed of several areas, that
are linked by a 10 GHz microwave link.
The areas 1 to 4 make up a zone in the
example above.
❑ The setting when Station A is call-
ing Station C
UR
R1
R2
MY
Area 4 Repeater 4
: A44444
Station C
: A4444C
: A4444C
: A22222
: A44444
: A2222A
