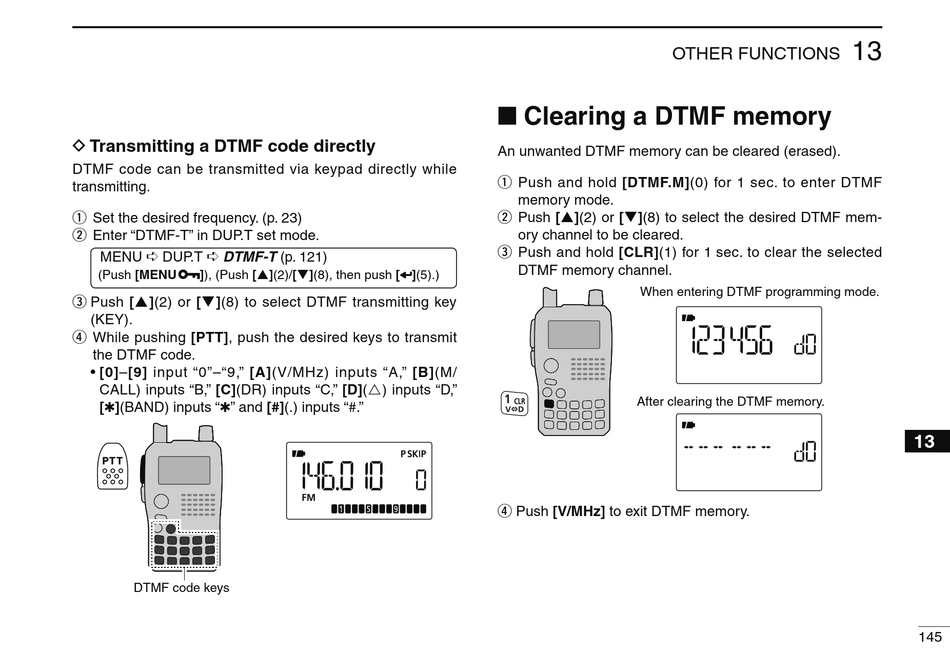

D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency. (p. 23)
w Enter "DTMF-T" in DUP.T set mode.
MENU DUP.T DTMF-T (p. 121)
(Push [MENU ]), (Push [ ](2)/[ ](8), then push [ ](5).)
e Push [ ](2) or [ ](8) to select DTMF transmitting key
(KEY).
r While pushing [PTT], push the desired keys to transmit
the DTMF code.
• [0]–[9] input "0"–"9," [A](V/MHz) inputs "A," [B](M/
CALL) inputs "B," [C](DR) inputs "C," [D]( ) inputs "D,"
[ ](BAND) inputs " " and [#](.) inputs "#."
DTMF code keys
OTHER FUNCTIONS

Clearing a DTMF memory

An unwanted DTMF memory can be cleared (erased).
q Push and hold [DTMF.M](0) for 1 sec. to enter DTMF
memory mode.
w Push [ ](2) or [ ](8) to select the desired DTMF mem-
ory channel to be cleared.
e Push and hold [CLR](1) for 1 sec. to clear the selected
DTMF memory channel.
When entering DTMF programming mode.
After clearing the DTMF memory.
r Push [V/MHz] to exit DTMF memory.
