I Clearing A Dtmf Memory; I Confirming A Dtmf Memory - Icom IC-T90A Instruction Manual

9
OTHER FUNCTIONS

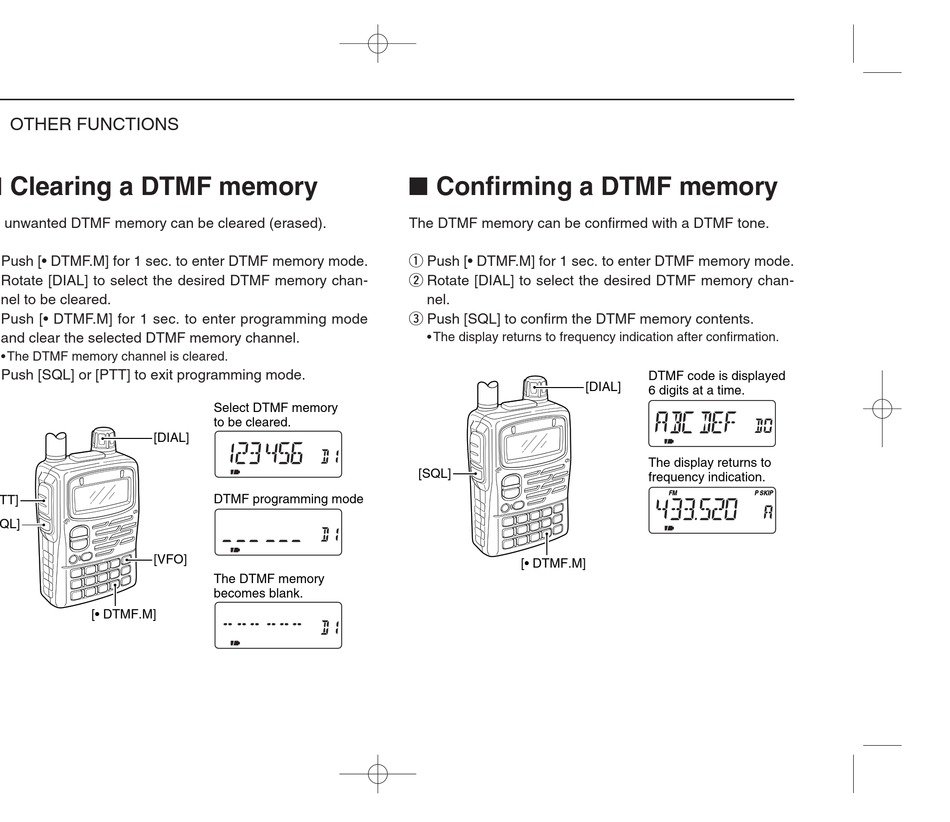

I Clearing a DTMF memory

An unwanted DTMF memory can be cleared (erased).
q Push [• DTMF.M] for 1 sec. to enter DTMF memory mode.
w Rotate [DIAL] to select the desired DTMF memory chan-
nel to be cleared.
e Push [• DTMF.M] for 1 sec. to enter programming mode
and clear the selected DTMF memory channel.
• The DTMF memory channel is cleared.
r Push [SQL] or [PTT] to exit programming mode.
[PTT]
[SQL]
[• DTMF.M]
69
Select DTMF memory
to be cleared.
[DIAL]
DTMF programming mode
[VFO]
The DTMF memory
becomes blank.
I Confirming a DTMF memory
The DTMF memory can be confirmed with a DTMF tone.
q Push [• DTMF.M] for 1 sec. to enter DTMF memory mode.
w Rotate [DIAL] to select the desired DTMF memory chan-
nel.
e Push [SQL] to confirm the DTMF memory contents.
• The display returns to frequency indication after confirmation.
[DIAL]
[SQL]
[• DTMF.M]
DTMF code is displayed
6 digits at a time.
The display returns to
frequency indication.
FM P SKIP
