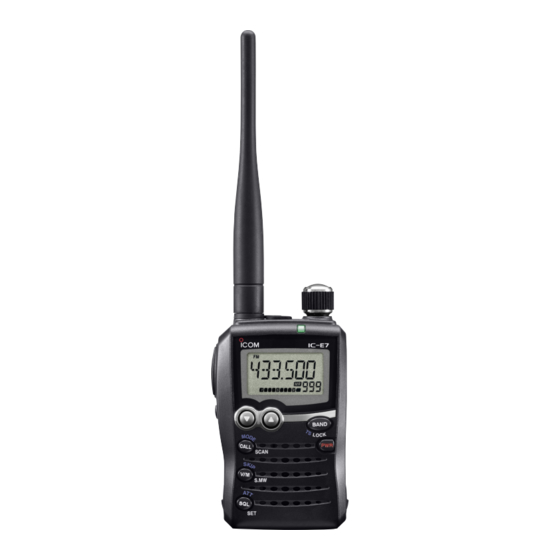

INSTRUCTION MANUAL
VHF/UHF DUAL BAND FM TRANSCEIVER
iE7
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CEL-
LULAR RADIO TELEPHONE SERVICE SIGNALS IS PROHIBITED
UNDER FCC RULES AND FEDERAL LAW.

Advertisement

loading
Need help?

Need help?

Do you have a question about the IC-E7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Icom IC-E7

Summary of Contents for Icom IC-E7

  • Page 1 INSTRUCTION MANUAL VHF/UHF DUAL BAND FM TRANSCEIVER This device complies with Part 15 of the FCC rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 2 RWARNING! We want to take a couple of moments of your time to thank you shock may occur. for making your IC-E7 your radio of choice, and hope you agree Equipment damage may occur. CAUTION with Icom’s philosophy of “technology first.” Many hours of re- If disregarded, inconvenience only.
  • Page 3 Icom radios or Icom chargers. Only Icom battery with wet hands. This may result in an electric shock or may packs are tested and approved for use with Icom radios or damage the transceiver. charged with Icom chargers. Using third-party or counterfeit...
  • Page 4 SUPPLIED ACCESSORIES TABLE OF CONTENTS FOREWORD .................... i IMPORTANT ..................... i EXPLICIT DEFINITIONS ................i DISPOSAL ....................i PRECAUTIONS ..................ii SUPPLIED ACCESSORIES ..............iii TABLE OF CONTENTS ................iii QUICK REFERENCE GUIDE ���������������������������������������������������������� I–VIII ■ Preparation ..................I ■ Your first contact ................III ■...
  • Page 5 ■ Transmitting..................16 ■ Priority watch operation..............43 ■ Transmit power selection ............... 16 9 TONE SQUELCH AND POCKET BEEP ........45–48 ■ Dial select step ................17 ■ Tone/DTCS squelch operation ............45 ■ Lock function .................. 18 ■ Tone squelch frequency/DTCS code setting ........46 ■...
  • Page 6 QUICK REFERENCE GUIDE ■ Preparation D Battery installation D D Antenna qRemove the battery cover from the transceiver. Insert the supplied antenna into the wInstall the BP-243 (Li-Ion battery pack). antenna connector and screw down • Be sure to observe the correct polarity. the antenna as shown at right.
  • Page 7 QUICK REFERENCE GUIDE D Charging the battery D Charging description qPlug the AC adapter into an AC outlet; or the optional CP- 21LR into a cigarette lighter socket. wInsert the adapter plug into [12~16V DC INPUT] of the BC- Transceiver to [12~16V DC INPUT] jack BATTERY CHARGER eInstall the BP-243...
  • Page 8 ■ Your first contact 2. Adjusting audio level Now that you have your IC-E7 ready, you are probably ex- cited to get on the air. We would like to take you through a ➥ Push [Y Y ]/[Z Z ] to set the desired audio level.
  • Page 9 QUICK REFERENCE GUIDE 4. Tune the desired frequency 5. Operating mode selection The tuning dial will allow you to dial in the frequency you want ➥ While pushing and holding to use. Pages 11 and 17 will instruct you on how to set the push [FUNC], [CALL]...
  • Page 10 QUICK REFERENCE GUIDE ■ Repeater operation 1. Setting duplex 2. Repeater tone qWhile pushing and holding [DIAL] qWhile pushing and holding [DIAL] [FUNC], push and hold [SQL] [FUNC], push and hold [SQL] ) for 1 sec. to enter set ) for 1 sec. to enter set •...
  • Page 11 QUICK REFERENCE GUIDE ■ Memory programming The IC-E7 has a total of 1250 memory channels (including 3. Writing a memory channel 200 auto write channels and 50 scan edges) for storing often Push and hold [V/M] ( ) for 1 sec. until 3 beeps •...
  • Page 12 ■ ■ #11 UK <Intended Country of Use> ■ ■ ■ ■ ■ ■ ■ ■ ■ GBR ■ ■ ■ ■ ■ ■ ■ ■ A-6468D-1EU-0a Printed in Japan 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan 2005–2015 Icom Inc. ©...
