8
GPS/GPS-A OPERATION

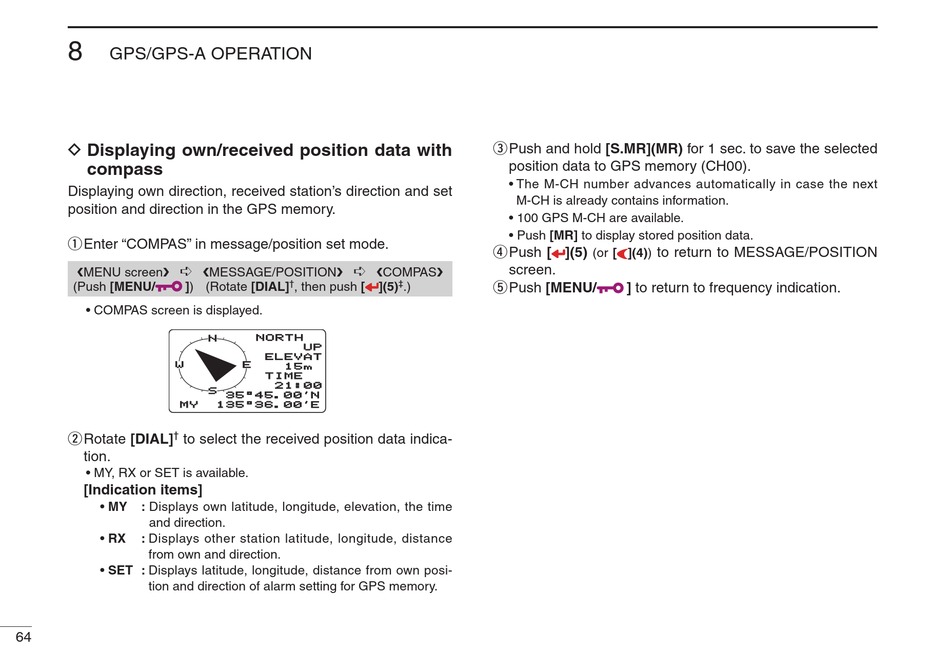

D Displaying own/received position data with
compass
Displaying own direction, received station's direction and set
position and direction in the GPS memory.
q Enter "COMPAS" in message/position set mode.
➪
❮MENU screen❯
(Push [MENU/ ]) (Rotate [DIAL]
• COMPAS screen is displayed.
W
MY MY
w Rotate [DIAL]
†
to select the received position data indica-
tion.
• MY, RX or SET is available.
[Indication items]
• MY : Displays own latitude, longitude, elevation, the time
and direction.
• RX : Displays other station latitude, longitude, distance
from own and direction.
• SET : Displays latitude, longitude, distance from own posi-
tion and direction of alarm setting for GPS memory.
64
➪
❮MESSAGE/POSITION❯ ❮COMPAS❯
†
, then push [ ](5)
N NORTH NORTH
UP UP
ELEVAT ELEVAT
E
15m 15m
TIME TIME
21:00 21:00
S
35°45 35 45.00 N
135 135°36 36.00 E
e Push and hold [S.MR](MR) for 1 sec. to save the selected
position data to GPS memory (CH00).
• The M-CH number advances automatically in case the next
M-CH is already contains information.
• 100 GPS M-CH are available.
• Push [MR] to display stored position data.
r Push [ ](5)
screen.
t Push [MENU/
‡
.)
to return to MESSAGE/POSITION
(or [ ](4))
] to return to frequency indication.
