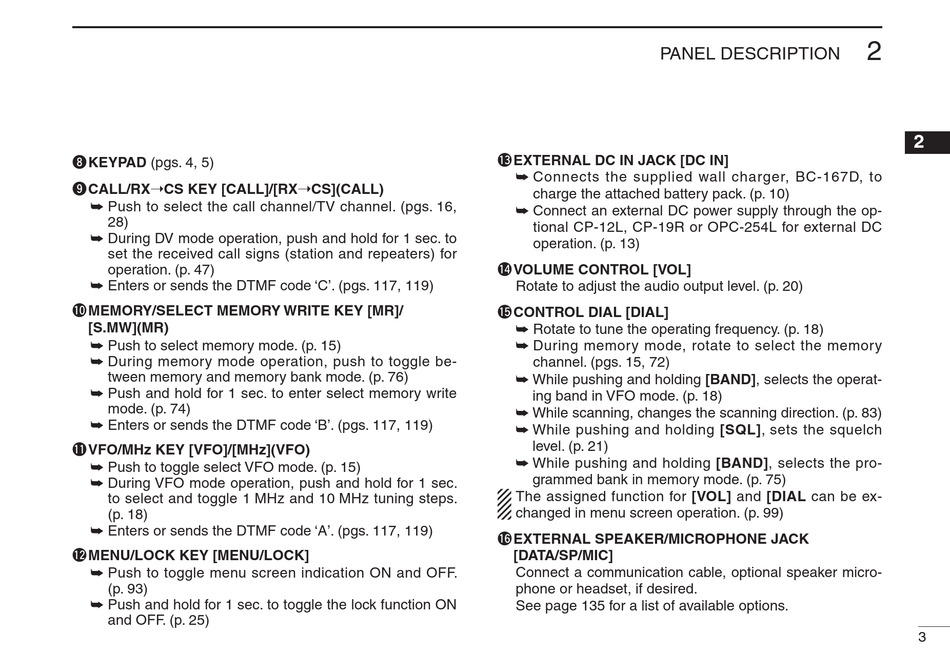

Icom IC-E92D Instruction Manual page 11

i KEYPAD (pgs. 4, 5)
o CALL/RX➝CS KEY [CALL]/[RX➝CS](CALL)
➥ Push to select the call channel/TV channel. (pgs. 16,
28)
➥ During DV mode operation, push and hold for 1 sec. to
set the received call signs (station and repeaters) for
operation. (p. 47)
➥ Enters or sends the DTMF code 'C'. (pgs. 117, 119)
!0 MEMORY/SELECT MEMORY WRITE KEY [MR]/
[S.MW](MR)
➥ Push to select memory mode. (p. 15)
➥ During memory mode operation, push to toggle be-
tween memory and memory bank mode. (p. 76)
➥ Push and hold for 1 sec. to enter select memory write
mode. (p. 74)
➥ Enters or sends the DTMF code 'B'. (pgs. 117, 119)
!1 VFO/MHz KEY [VFO]/[MHz](VFO)
➥ Push to toggle select VFO mode. (p. 15)
➥ During VFO mode operation, push and hold for 1 sec.
to select and toggle 1 MHz and 10 MHz tuning steps.
(p. 18)
➥ Enters or sends the DTMF code 'A'. (pgs. 117, 119)
!2 MENU/LOCK KEY [MENU/LOCK]
➥ Push to toggle menu screen indication ON and OFF.
(p. 93)
➥ Push and hold for 1 sec. to toggle the lock function ON
and OFF. (p. 25)
PANEL DESCRIPTION
!3 EXTERNAL DC IN JACK [DC IN]
➥ Connects the supplied wall charger, BC-167D, to
charge the attached battery pack. (p. 10)
➥ Connect an external DC power supply through the op-
tional CP-12L, CP-19R or OPC-254L for external DC
operation. (p. 13)
!4 VOLUME CONTROL [VOL]
Rotate to adjust the audio output level. (p. 20)
!5 CONTROL DIAL [DIAL]
➥ Rotate to tune the operating frequency. (p. 18)
➥ During memory mode, rotate to select the memory
channel. (pgs. 15, 72)
➥ While pushing and holding [BAND], selects the operat-
ing band in VFO mode. (p. 18)
➥ While scanning, changes the scanning direction. (p. 83)
➥ While pushing and holding [SQL], sets the squelch
level. (p. 21)
➥ While pushing and holding [BAND], selects the pro-
grammed bank in memory mode. (p. 75)
The assigned function for [VOL] and [DIAL can be ex-
changed in menu screen operation. (p. 99)
!6 EXTERNAL SPEAKER/MICROPHONE JACK
[DATA/SP/MIC]
Connect a communication cable, optional speaker micro-
phone or headset, if desired.
See page 135 for a list of available options.
