Alarm Area - Icom IC-E92D Instruction Manual

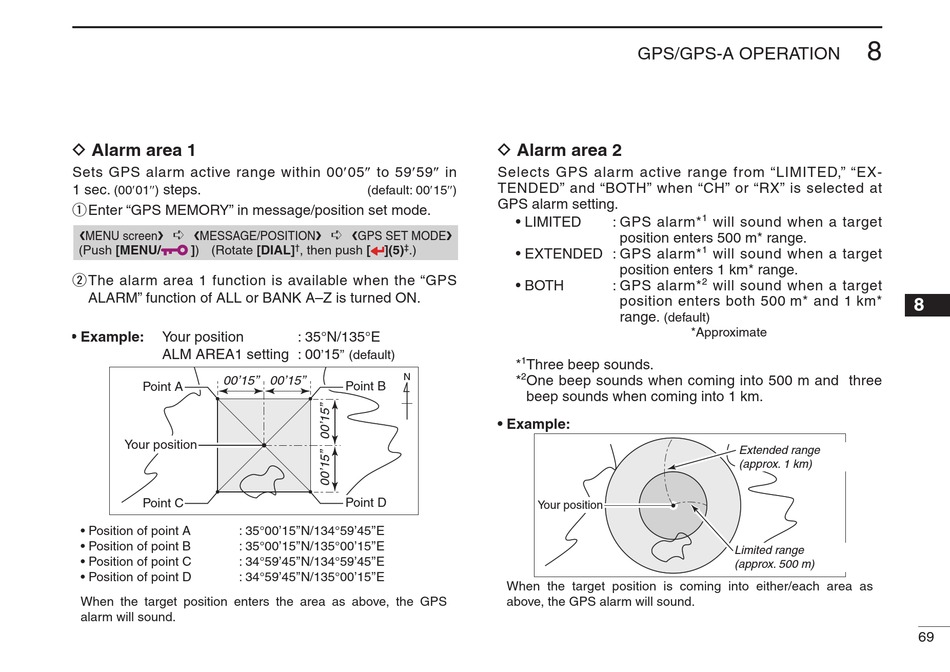

D Alarm area 1
Sets GPS alarm active range within 00'05" to 59'59" in
1 sec. steps.
(00'01")
q Enter "GPS MEMORY" in message/position set mode.
➪
❮MENU screen❯ ❮MESSAGE/POSITION❯
(Push [MENU/ ]) (Rotate [DIAL]
w The alarm area 1 function is available when the "GPS
ALARM" function of ALL or BANK A–Z is turned ON.
• Example: Your position
ALM AREA1 setting : 00
00'15'' 00'15''
Point A
Your position
Point C
• Position of point A : 35°00'15''N/134°59'45''E
• Position of point B : 35°00'15''N/135°00'15''E
• Position of point C : 34°59'45''N/134°59'45''E
• Position of point D : 34°59'45''N/135°00'15''E
When the target position enters the area as above, the GPS
alarm will sound.
(default: 00'15")
➪
❮GPS SET MODE❯
† ‡
, then push [ ](5) .)
: 35°N/135°E
15
' '' (default)
N
Point B
Point D
GPS/GPS-A OPERATION
D Alarm area 2
Selects GPS alarm active range from "LIMITED," "EX-
TENDED" and "BOTH" when "CH" or "RX" is selected at
GPS alarm setting.
• LIMITED : GPS alarm*
position enters 500 m* range.
• EXTENDED : GPS alarm*
position enters 1 km* range.
• BOTH : GPS alarm*
position enters both 500 m* and 1 km*
range.
(default)
1
* Three beep sounds.
2
* One beep sounds when coming into 500 m and three
beep sounds when coming into 1 km.
• Example:
Your position
When the target position is coming into either/each area as
above, the GPS alarm will sound.
8
1
will sound when a target
1
will sound when a target
2
will sound when a target
*Approximate
Extended range
(approx. 1 km)
Limited range
(approx. 500 m)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
69
