Table 12-10. Redudancy Configuration Fields - Comtech EF Data CIM-550 Installation And Operation Manual

CiM-550 IP Enabled Satellite Modem
Web Server Pages

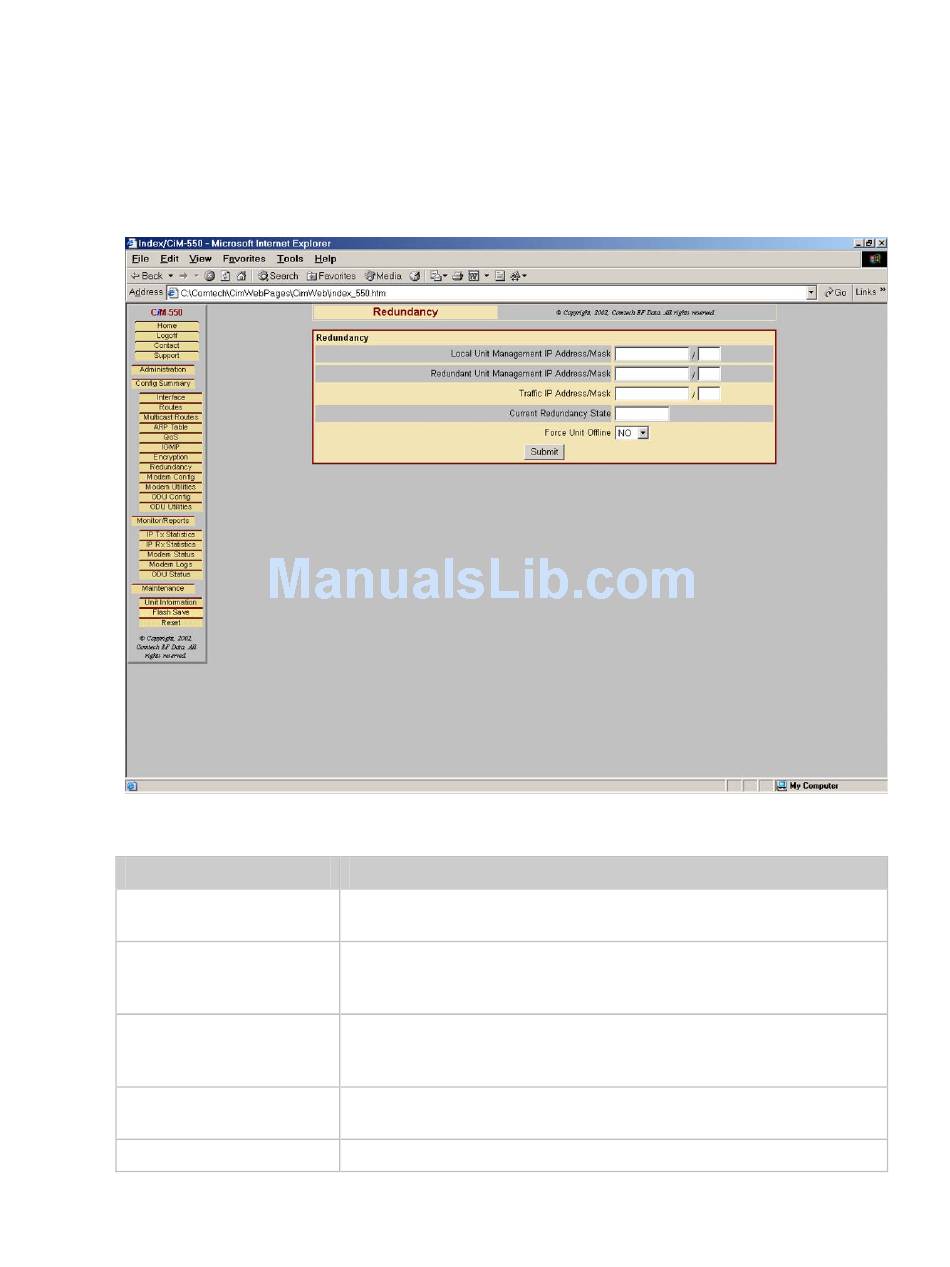

12.3.6.8 R
EDUNDANCY
Note: This page is not configurable unless the modem is properly connected to a Comtech EF
Data qualified Redundancy Switch. Refer to Section 11.2.6 CLI/Telnet Redundancy Configuration
for CRS-100/CiM-550 cabling information.
Field
Local Unit Management
IP Address/Mask
Redundant Unit
Management IP
Address/Mask
Traffic IP Address/Mask
Redundancy State
Force Unit Offline
C
ONFIGURATION

Table 12-10. Redudancy Configuration Fields

Description
Read only field displays the CiM unit's IP address and mask values.
Read only field displays the redundant unit's IP address and mask
values.
Enter the traffic IP address and mask values. These values are
stored in the redundant modem's memory and are used to address
the redundant modem's CiM system.
Read only field indicates whether the redundant device is online or
offline.
Forces redundant unit offline.
