CLI and Telnet Interface
11.2.7.5 R
EMOTE

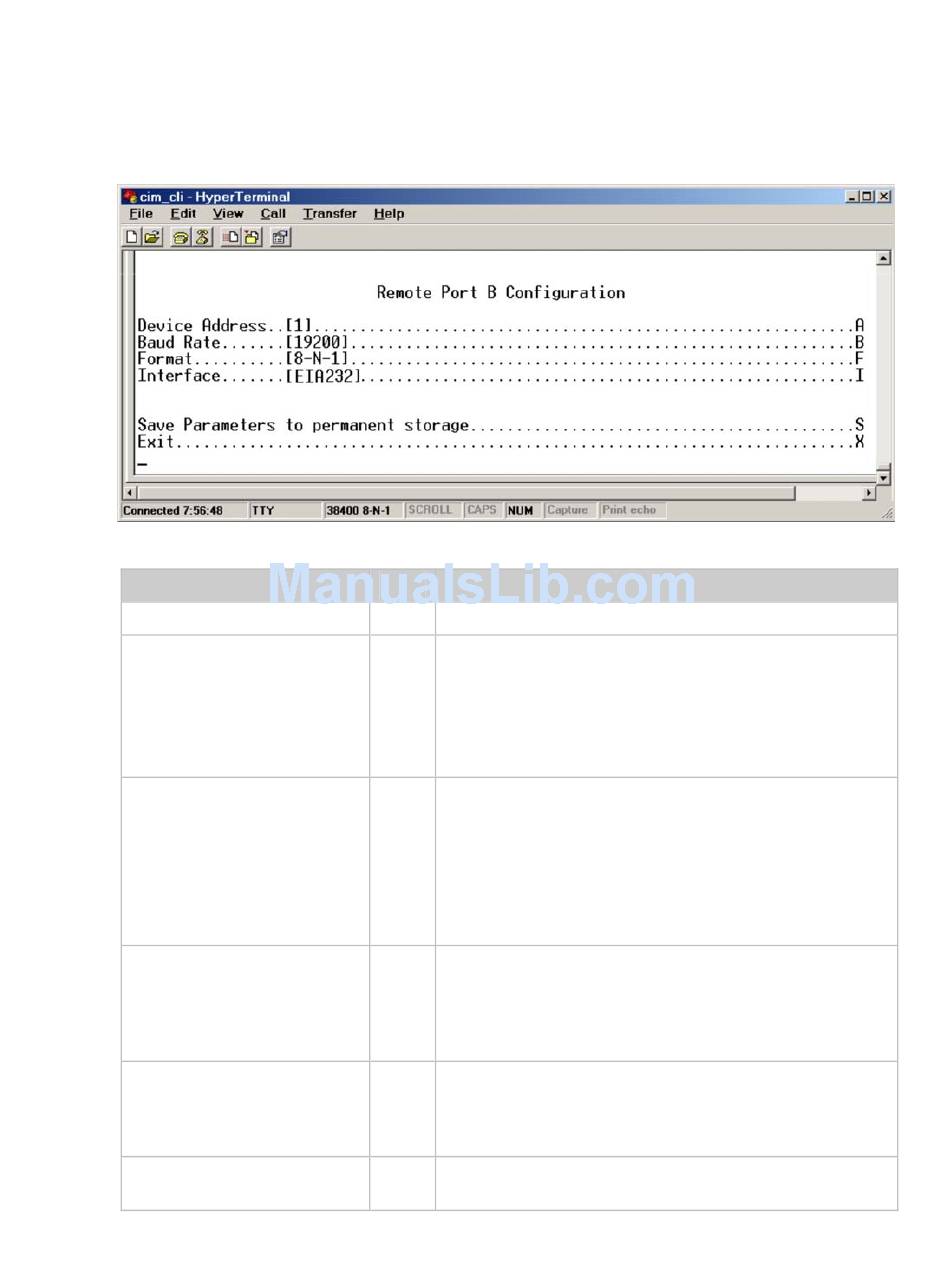

The Remote Port B Configuration page is activated from the Operations and
Maintenance page.
The Remote Port B Configuration page contains the following options/fields:
Menu Options/Fields
Device Address
Baud Rate
Format
Interface
Save Parameters
Exit
P
B C
ORT
ONFIGURATION
Entry
P
AGE
Description
Valid ranges are from 0 to 9999
A
B
The baud rate defines the speed of the serial interface.
The user can iterate through the possible rates by
successively selecting the menu option. This
parameter will assume one of the following bits per
second rates :
1200, 2400, 4800, 9600, 19200, 38400
F
The Remote Port B interface support three formats.
Each format describes the Data Bits, Parity, Stop Bits
that the serial interfaces will use to communicate.
The user can iterate through the list of possible values
by successively selecting the menu option. This
parameter will assume one of the following values:
[8-N-1], [7-E-2], [7-0-2]
I
The Interface setting configures the UART to operate in
one of three types of physical EIA-xxx interfaces (EIA-
232, EIA-485, EIA485-4W).The user can iterate
through the list of possible values by successively
selecting the menu option.
S
This option allows a user to save the current
configuration of the CiM to permanent storage. This
configuration will be restored on each successive
power cycle of the CiM.
X
This option allows a user to exit the current menu and
return to its parent menu.
172
Rev. 2
CD/CIM550.IOM
