Route Table Configuration Page - Comtech EF Data CIM-550 Installation And Operation Manual

CiM-550 IP Enabled Satellite Modem
CLI and Telnet Interface
11.2.3 R T
OUTE ABLE

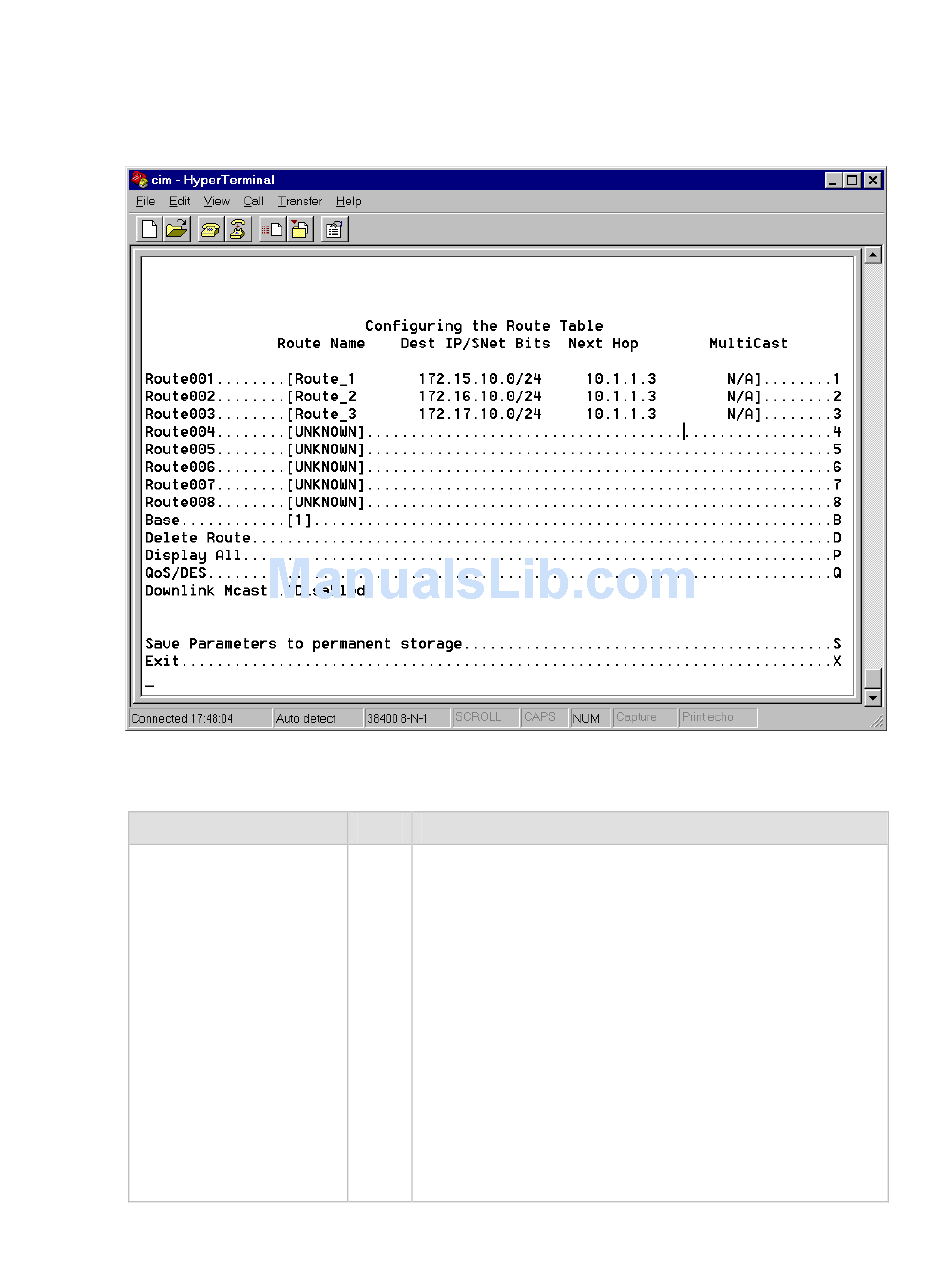

The Route Table Configuration page is activated from the Main Menu page.
The Route Table Configuration page contains the following options/fields:
Menu Options/Fields
Route001-Route008
(The 8 currently
displayed routes)
C P
ONFIGURATION
Entry Description
1-8 The Route Table allows a user to define how the packets
that the CiM receives are routed. Defining an entry in this
table is similar to the using the 'route add' command of
machines that support that command. For each route, the
user must define
1.
2.
The number of network addresses that are governed
by the selected destination entry i.e. subnet mask.
The Next Hop IP address. This is the IP where the
packet will be routed to for further processing. The
Next Hop IP Address must be on the same subnet as
either the Ethernet or Satellite interfaces.
AGE
A name assigned by the user to reference the
route. The assigned name can not contain any
whitespace and must be unique.
The destination address of an IP packet of
interest.
