To create a vector shape using the Pen tool:
In the Vector Shape window, click the New Cast Member button.
1

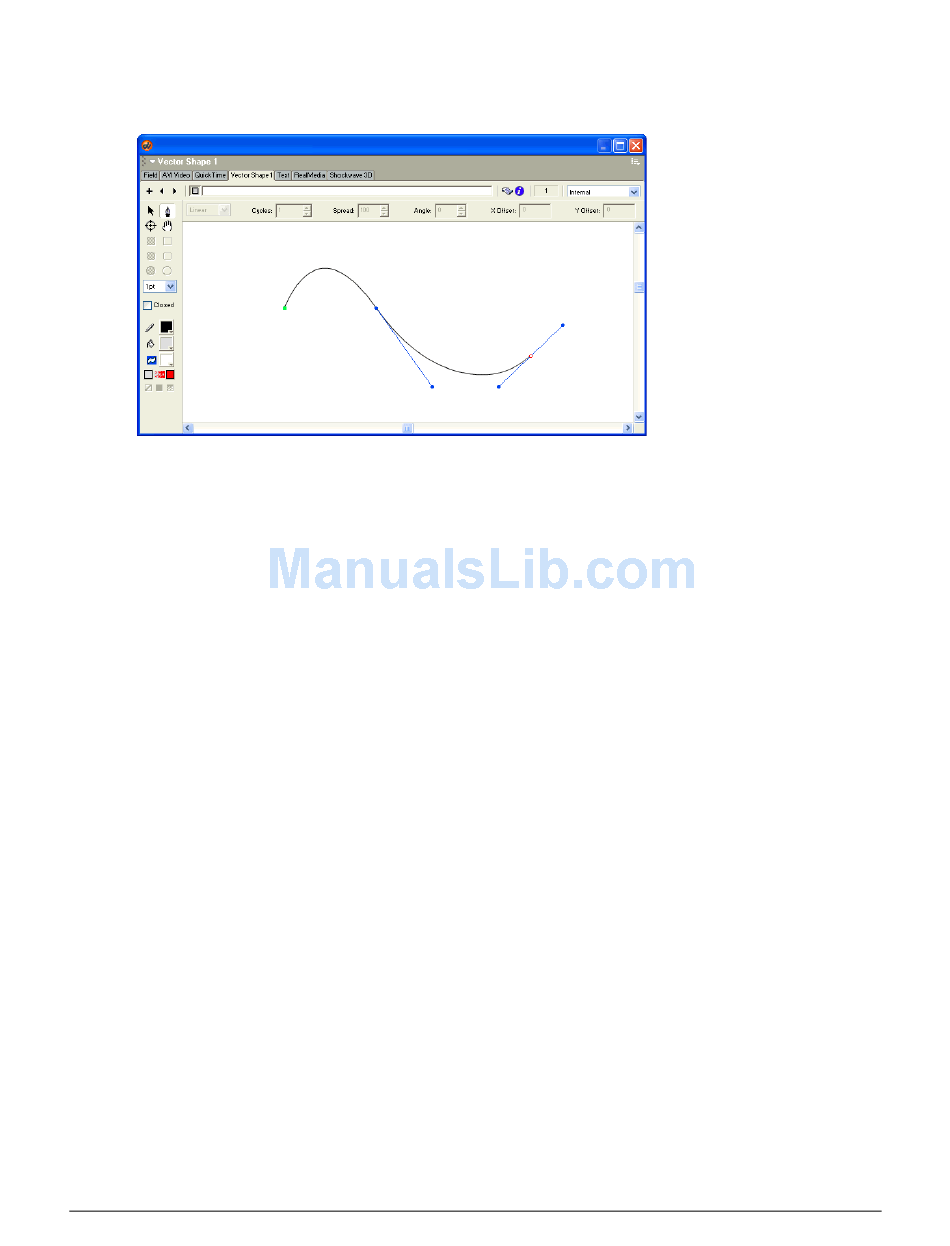

Click the Pen tool and begin to draw:
2
•
To create a corner point, click once.
•
To create a curve point, click and drag. Dragging creates control handles that define how the
line curves through the point you define.
•
To constrain a new point to vertical, horizontal, or a 45° angle, hold down Shift while clicking.
To draw using a basic shape tool:
In the Vector Shape window, click the New Cast Member button.
1
Select the Filled or Unfilled Rectangle, Rounded Rectangle, or Ellipse tool.
2
Hold down the mouse button to start a shape, drag to draw, and release the mouse button to
3
end the shape.
To constrain a rectangle to a square, or to constrain an ellipse to a circle, hold down Shift
while dragging.
To select a vertex or vertices, do one of the following:
•
To select one vertex, select the Arrow tool and click the vertex.
•
To select multiple vertices, either select the Arrow tool and hold Shift while clicking the
vertices, or click and drag a selection rectangle over the vertices (marquee-select).
•
To select all the vertices in a curve, select the Arrow tool and double-click one of the vertices
in the curve.
