4
1
•

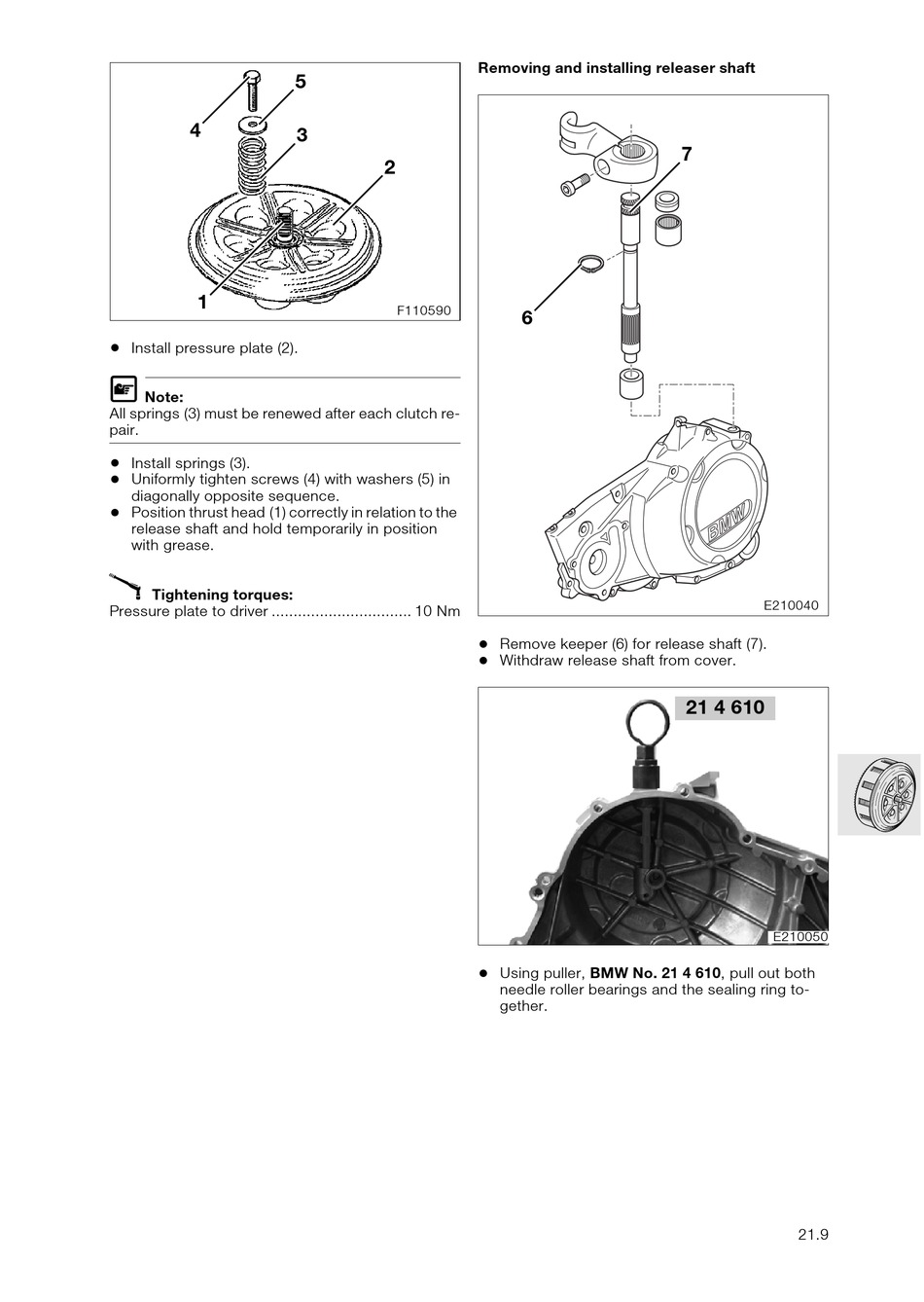

Install pressure plate (2).
L
Note:
All springs (3) must be renewed after each clutch re-
pair.
•
Install springs (3).
•
Uniformly tighten screws (4) with washers (5) in
diagonally opposite sequence.
•
Position thrust head (1) correctly in relation to the
release shaft and hold temporarily in position
with grease.
X
Tightening torques:
Pressure plate to driver ................................ 10 Nm
5
3
2
F110590

Removing and installing releaser shaft

6
•
Remove keeper (6) for release shaft (7).
•
Withdraw release shaft from cover.
•
Using puller, BMW No. 21 4 610, pull out both
needle roller bearings and the sealing ring to-
gether.
7
E210040
21 4 610
E210050
21.9
