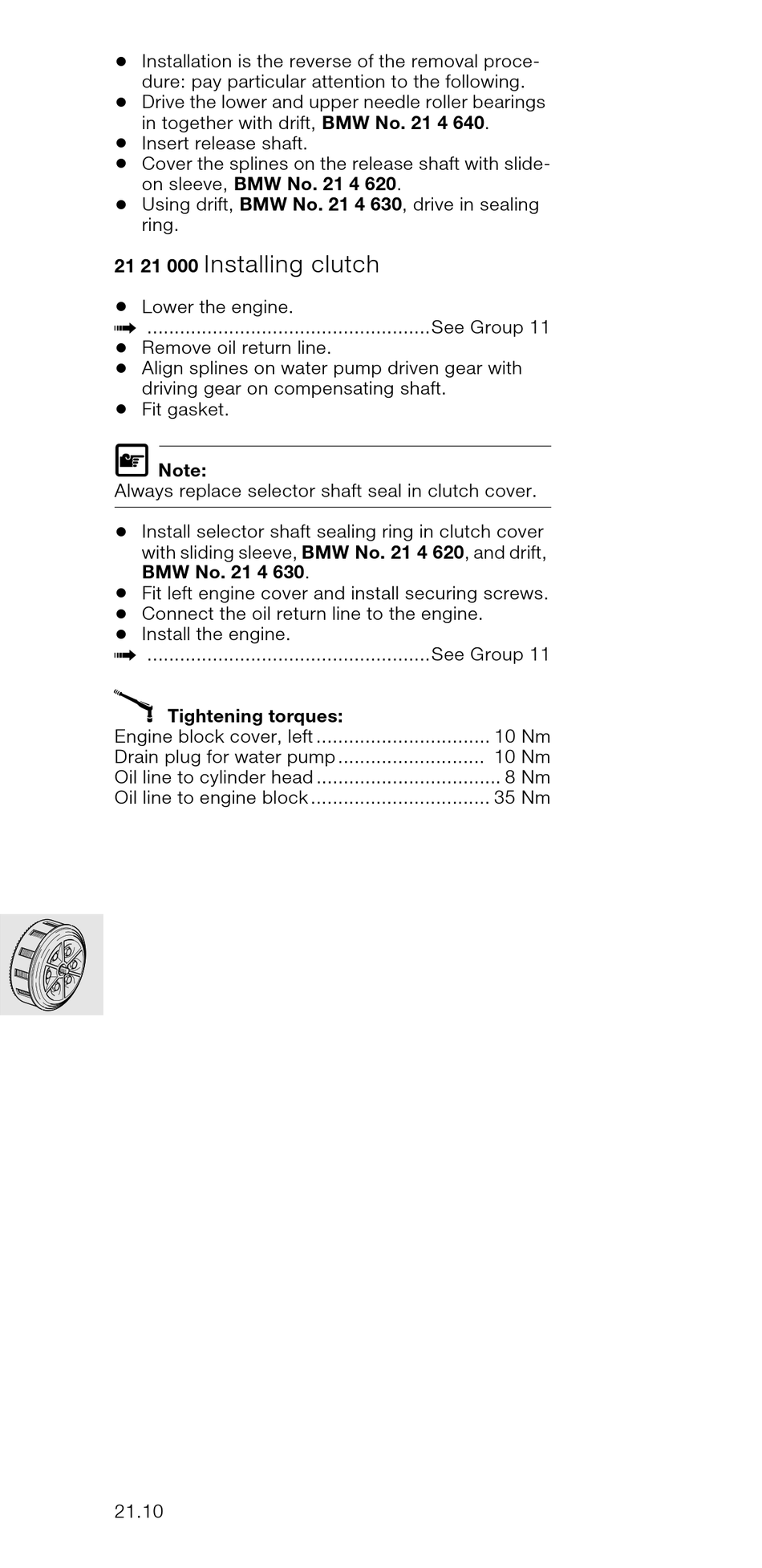

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Drive the lower and upper needle roller bearings
in together with drift, BMW No. 21 4 640.
•
Insert release shaft.
•
Cover the splines on the release shaft with slide-
on sleeve, BMW No. 21 4 620.
•
Using drift, BMW No. 21 4 630, drive in sealing
ring.
Installing clutch
21 21 000
•
Lower the engine.
....................................................See Group 11
a
•
Remove oil return line.
•
Align splines on water pump driven gear with
driving gear on compensating shaft.
•
Fit gasket.
L
Note:
Always replace selector shaft seal in clutch cover.
•
Install selector shaft sealing ring in clutch cover
with sliding sleeve, BMW No. 21 4 620, and drift,
BMW No. 21 4 630.
•
Fit left engine cover and install securing screws.
•
Connect the oil return line to the engine.
•
Install the engine.
....................................................See Group 11
a
X
Tightening torques:
Engine block cover, left ................................ 10 Nm
Drain plug for water pump ........................... 10 Nm
Oil line to cylinder head .................................. 8 Nm
Oil line to engine block ................................. 35 Nm
21.10
