[Integral ABS]
34 00

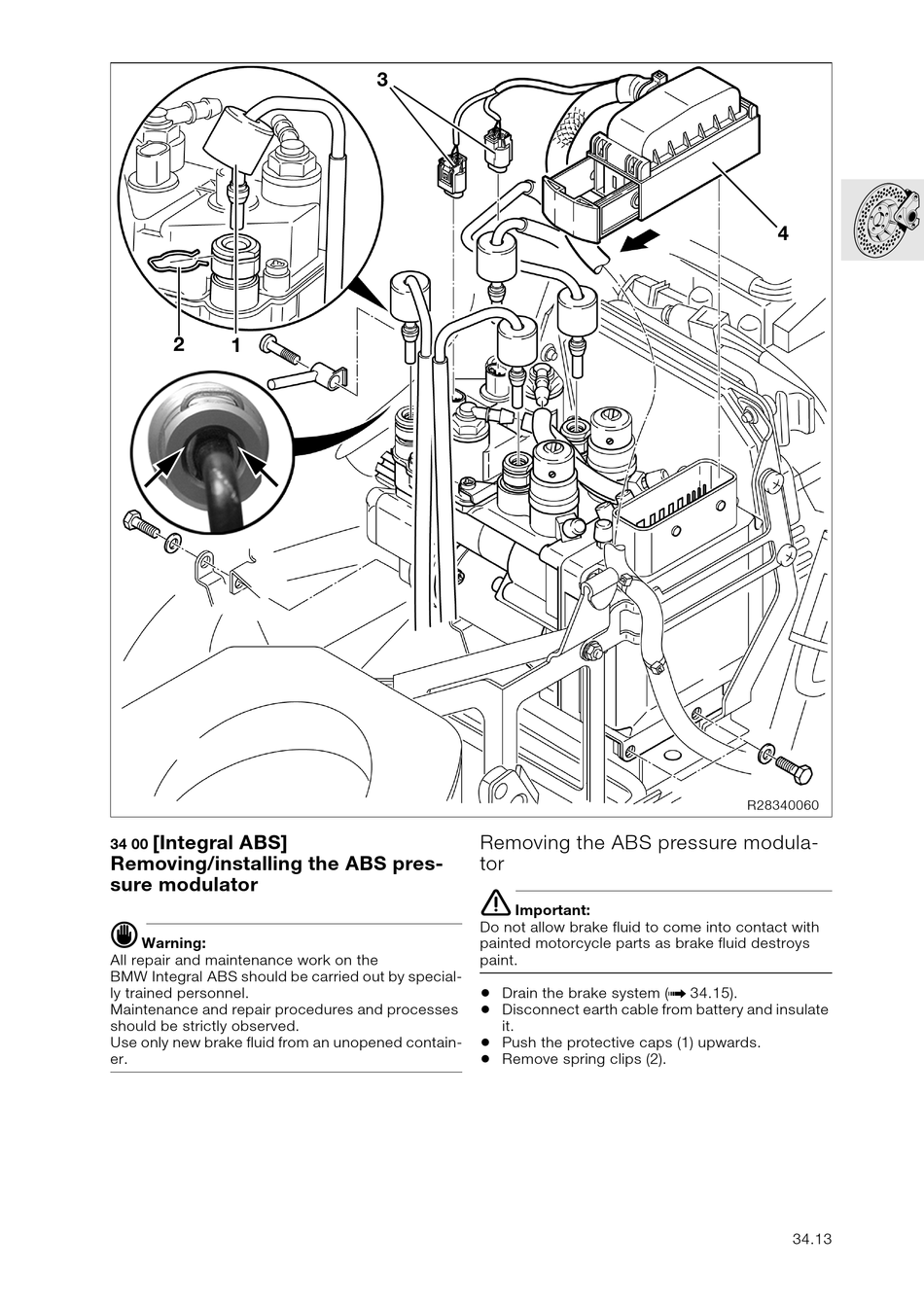

Removing/installing the ABS pres-
sure modulator
d
Warning:
All repair and maintenance work on the
BMW Integral ABS should be carried out by special-
ly trained personnel.
Maintenance and repair procedures and processes
should be strictly observed.
Use only new brake fluid from an unopened contain-
er.
3
Removing the ABS pressure modula-
tor
e
Important:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Drain the brake system (
•
Disconnect earth cable from battery and insulate
it.
•
Push the protective caps (1) upwards.
•
Remove spring clips (2).
4
R28340060
34.15).
a
34.13
