9.3.2 Control panel installation

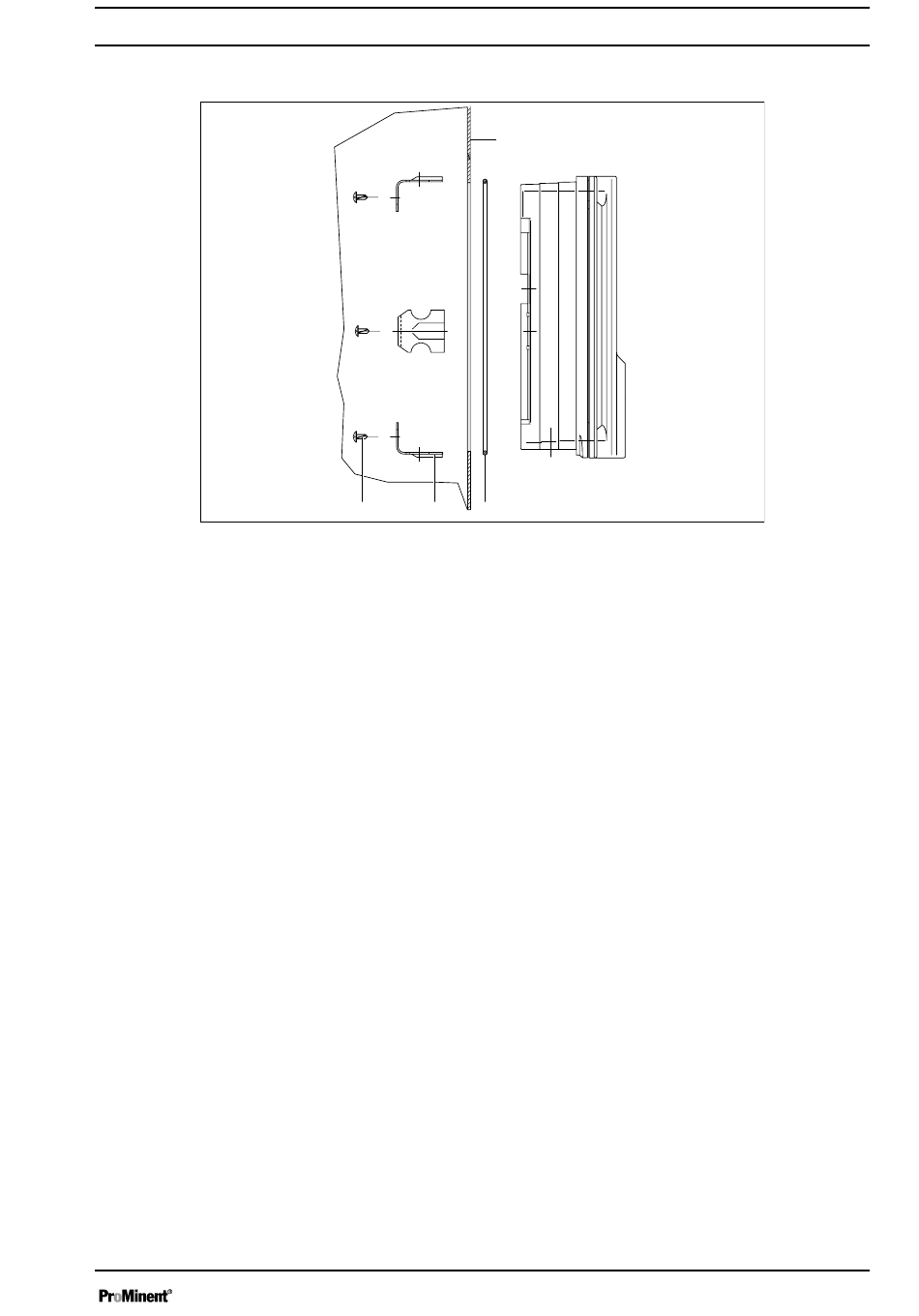

Fig. 14: Order number of the DAC control panel mounting kit (optional): 1041095.
I.
Control panel
1. Foam rubber caulking strip ∅3 (1x)
2. Galvanised steel retaining brackets (6x)
3. Galvanised PT cutting screws (6x)
Punched template
I.
3
2
1
Dimensional variations
Photocopying the punched template can result in dimensional
n
deviations.
Use the dimensions according to Fig. 15 and mark on the con‐
n
trol panel.
Material thickness of the control panel
The thickness of the control panel material should be at least 2
n
mm to ensure secure fixing.
Assembly and installation
A1179
33
