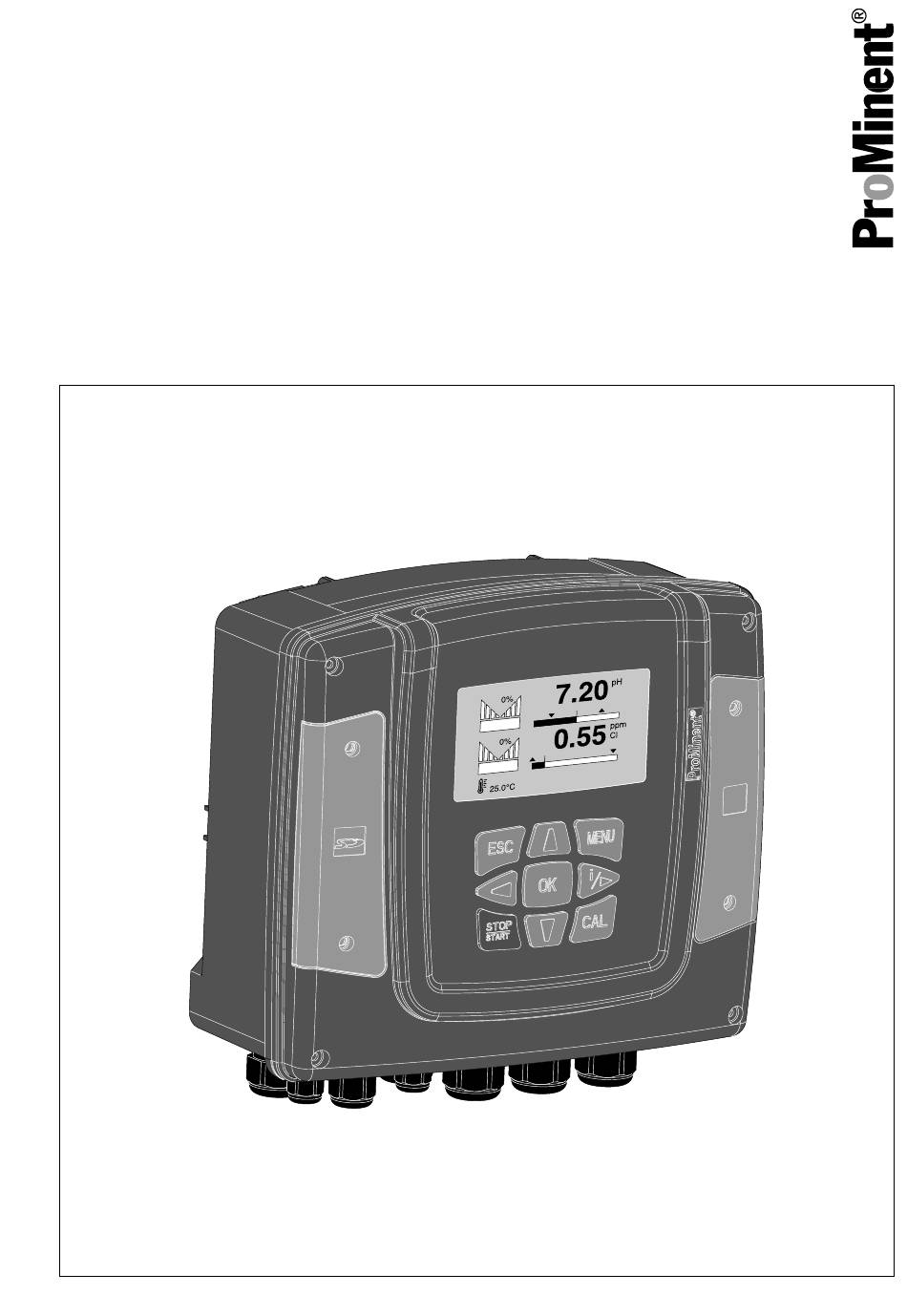

Assembly and operating instructions

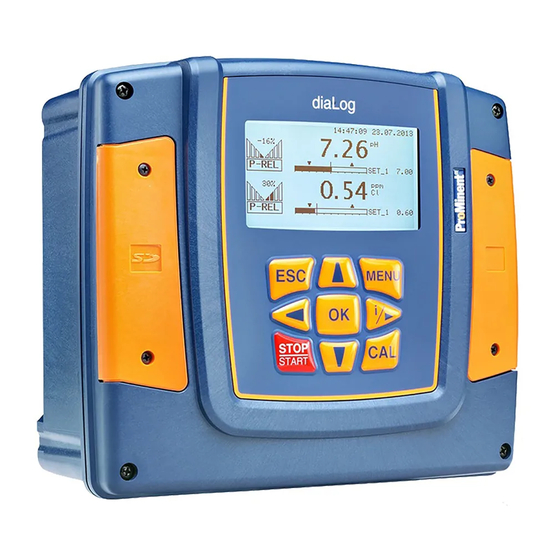

DULCOMETER
®
Multi-parameter Controller diaLog DACa
A1111
Please carefully read these operating instructions before use! · Do not discard!
The operator shall be liable for any damage caused by installation or operating errors!
Technical changes reserved.
Part no. 985250
BA DM 203 04/14 EN
