9.4.5.2.3
Terminal diagram with protective RC circuit (optional)

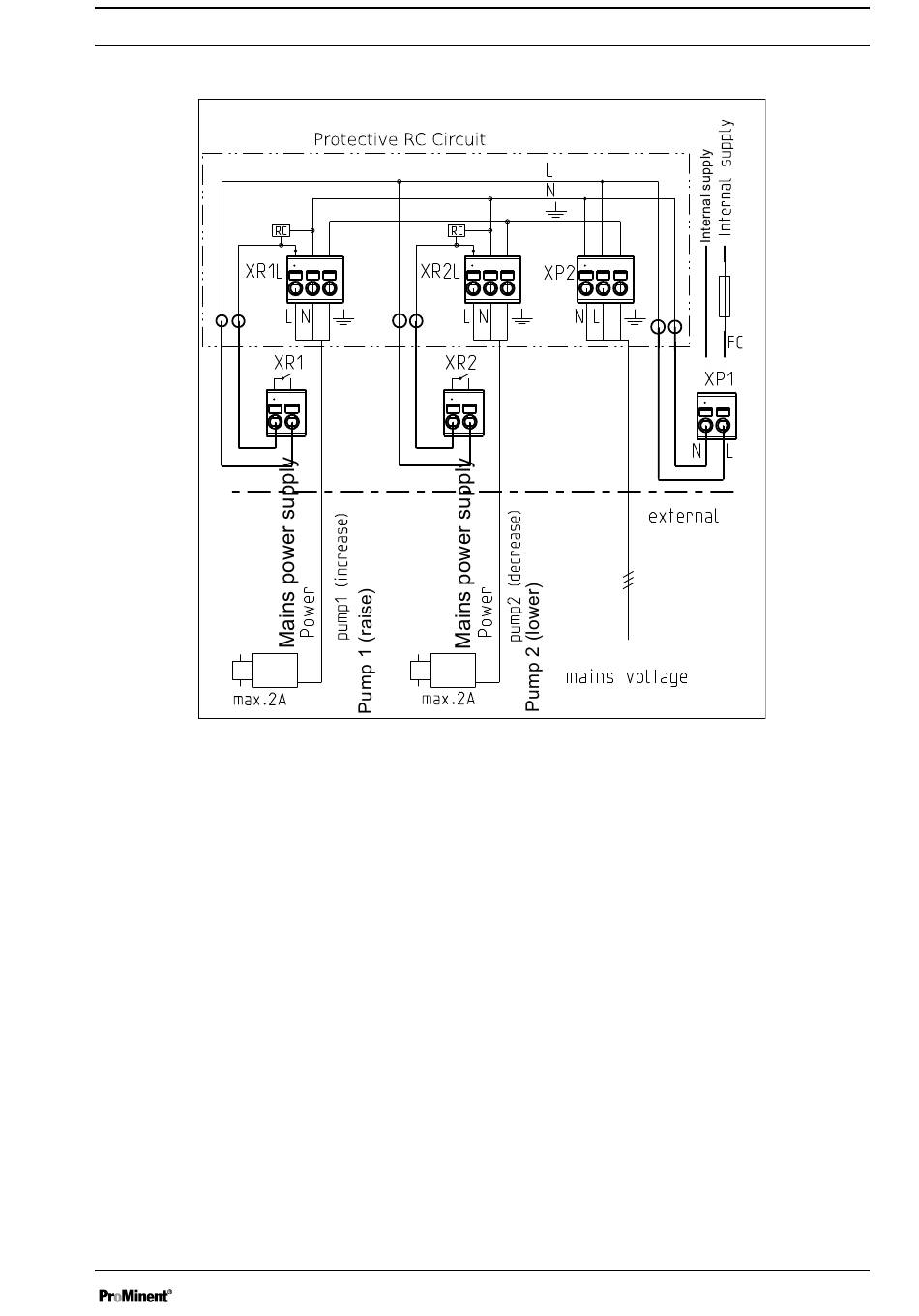

Fig. 22: Terminal diagram with protective RC circuit (module D, optional). The RC unit is only permitted in
conjunction with the 230 V design.
Protective RC circuit
Connectible conductor:
XP2, XR1L, XR2L: see terminal type 1
type 1' on page 41
Assembly and installation
External
Mains voltage
Ä Chapter 9.4.4.1 'Terminal
A1180
47
