The data log book (optional)
21.2
Configuring log books
The data log book is an optional feature. This option is currently
supplied as an industrial 512 MB SD card. The SD card provided
has a recording capacity of around 20 years based on a recording
interval of 10 seconds. SD cards with a capacity of up to 32 GB
can be used. They can therefore record approximately 1280 years.
If the SD card is inserted into the controller, this is displayed on the
display in the top left corner by the
80% full, then this level also appears on the screen as
the SD card is full, then the data is stored in the controller's internal
memory. If this internal memory is full, then the oldest data is over‐
written.
User qualification: instructed user, see
n
qualification' on page 16
Continuous display ➨
[Diagnostics]
It is possible to look through log books, perform a simulation of out‐
puts or view device information in this menu.
Diagnostics
Logbook
Simulation
Device information

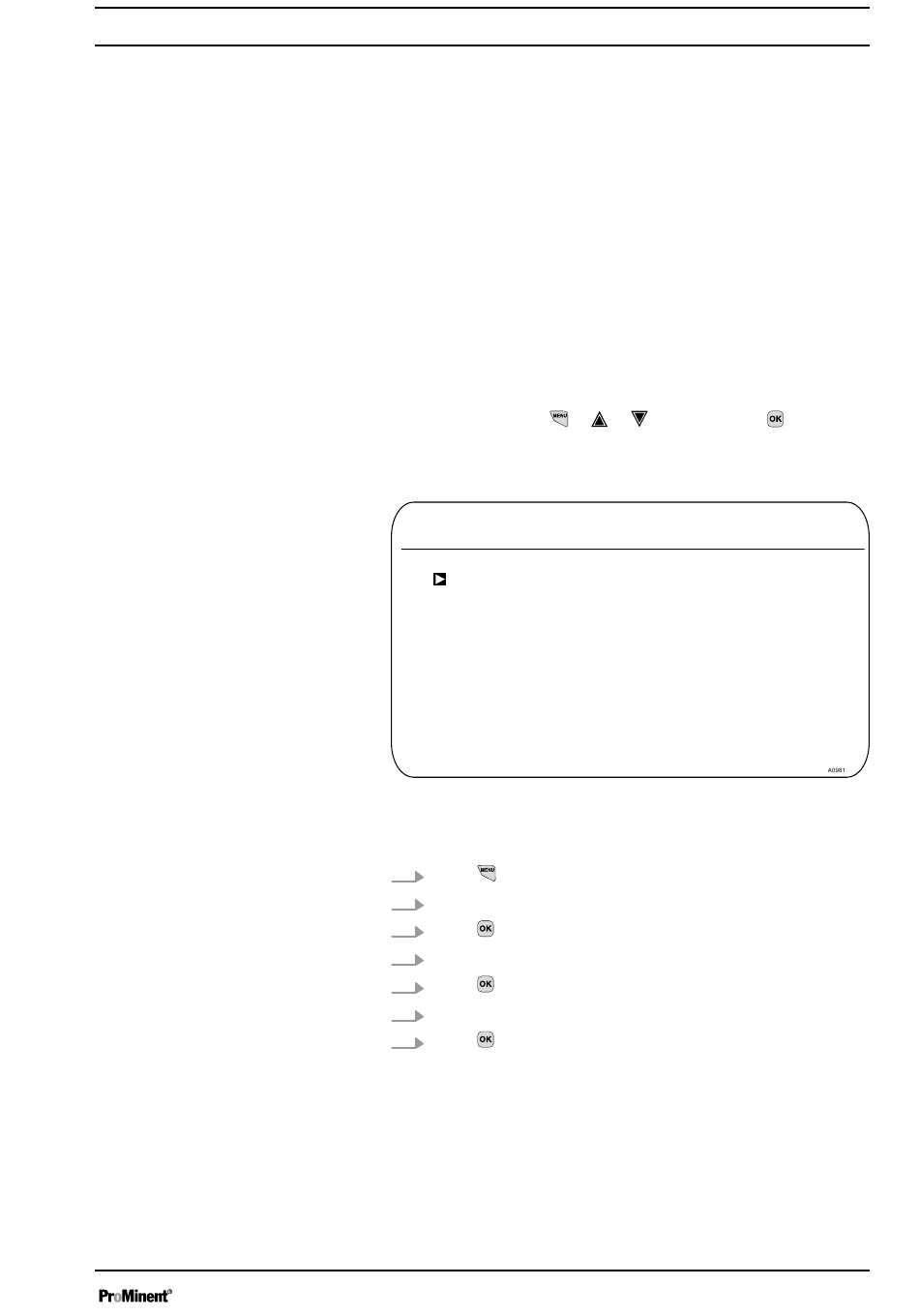

Fig. 113: [Diagnostics] > [Log books]
The calibration log book stores all calibrations of measured varia‐
bles with a time stamp.
1.
Press
in the continuous display
2.
Use the arrow keys to select
3.
Press
4.
Use the arrow keys to select
5.
Press
6.
Use the arrow keys to select
7.
Press
Function: Data logger
[SD] symbol. If the SD card is
Ä Chapter 2.4 'User
[Diagnostics] ➨
➨
or
[Diagnostics]
[Log books]
[Calibration log book]
[80% full] . If
9.1
151
