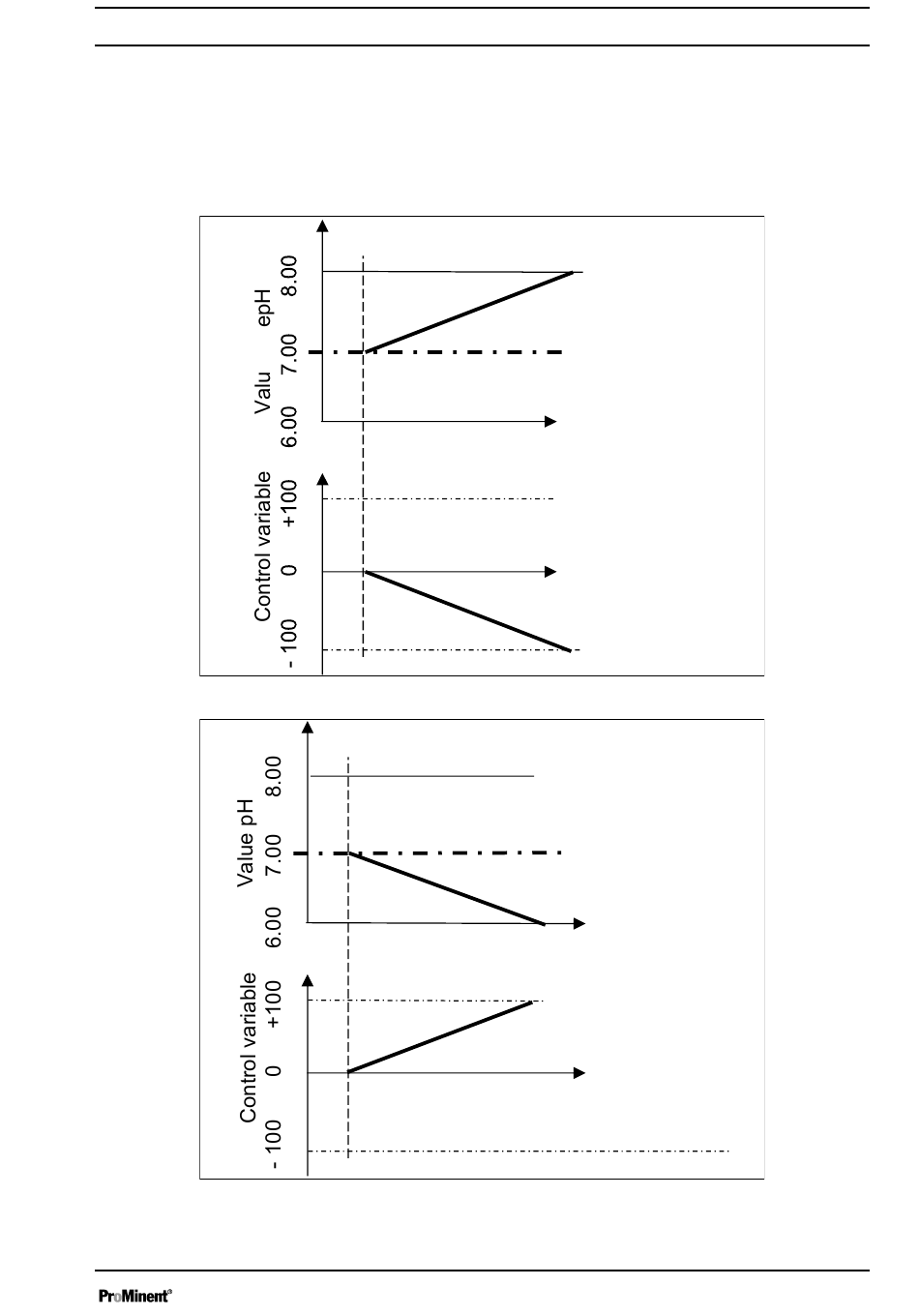

Fig. 89: Control type PID monodirectional, pH-lowering direction
Fig. 90: Control type PID monodirectional, pH-raising direction
Function: A monodirectional
possible directions (raise OR lower measured value).
Application: This affects, for example, a disinfection process, in
which chlorine is added to water. The incoming water has a
chlorine concentration of 0 ppm and is to be adjusted to 0.5 ppm
by the addition of sodium-calcium hypochlorite. The addition of
sodium-calcium hypochlorite raises the measured value.
Positive deviation
Setpoint
Negative control variable
Negative deviation
Positive control variable
Setting the
[control] operates in only one of two
Time
Time
A1470
Setpoint
Time
Time
A1472
[Control]
121
