Mounting on a surface
Taking surface mount off housing

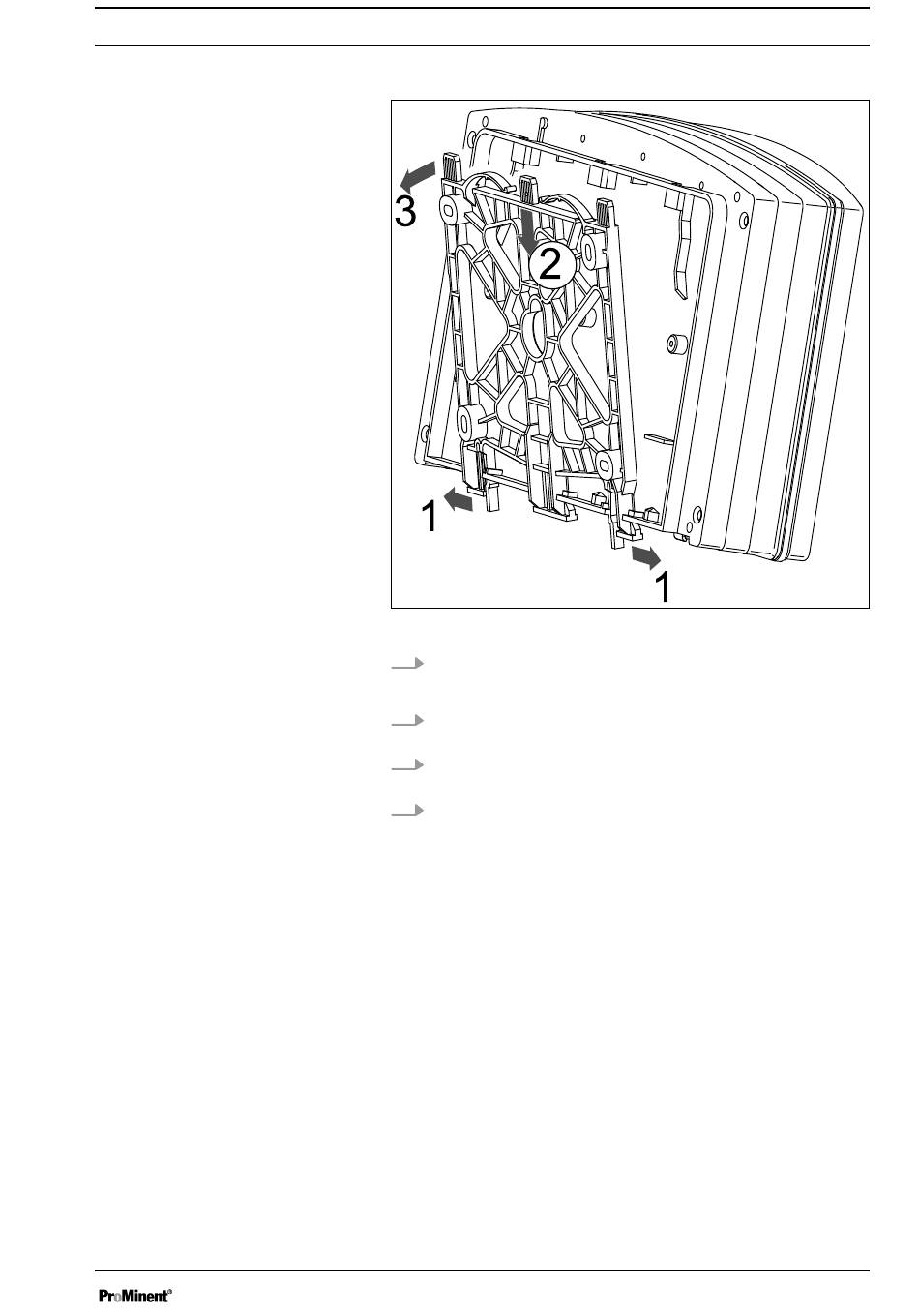

Fig. 11: Dismantling surface mount
1.
Pull the two snap hooks (1) outwards.
ð The surface mount snaps slightly downwards.
2.
Push the surface mount downwards (2) from the housing and
fold (3) it out.
3.
Use the surface mount as a drilling template to mark the
positions of four drill holes.
4.
Drill the holes: Ø 8 mm, depth = 50 mm.
Assembly and installation
A0490
31
