Assembly and installation
32

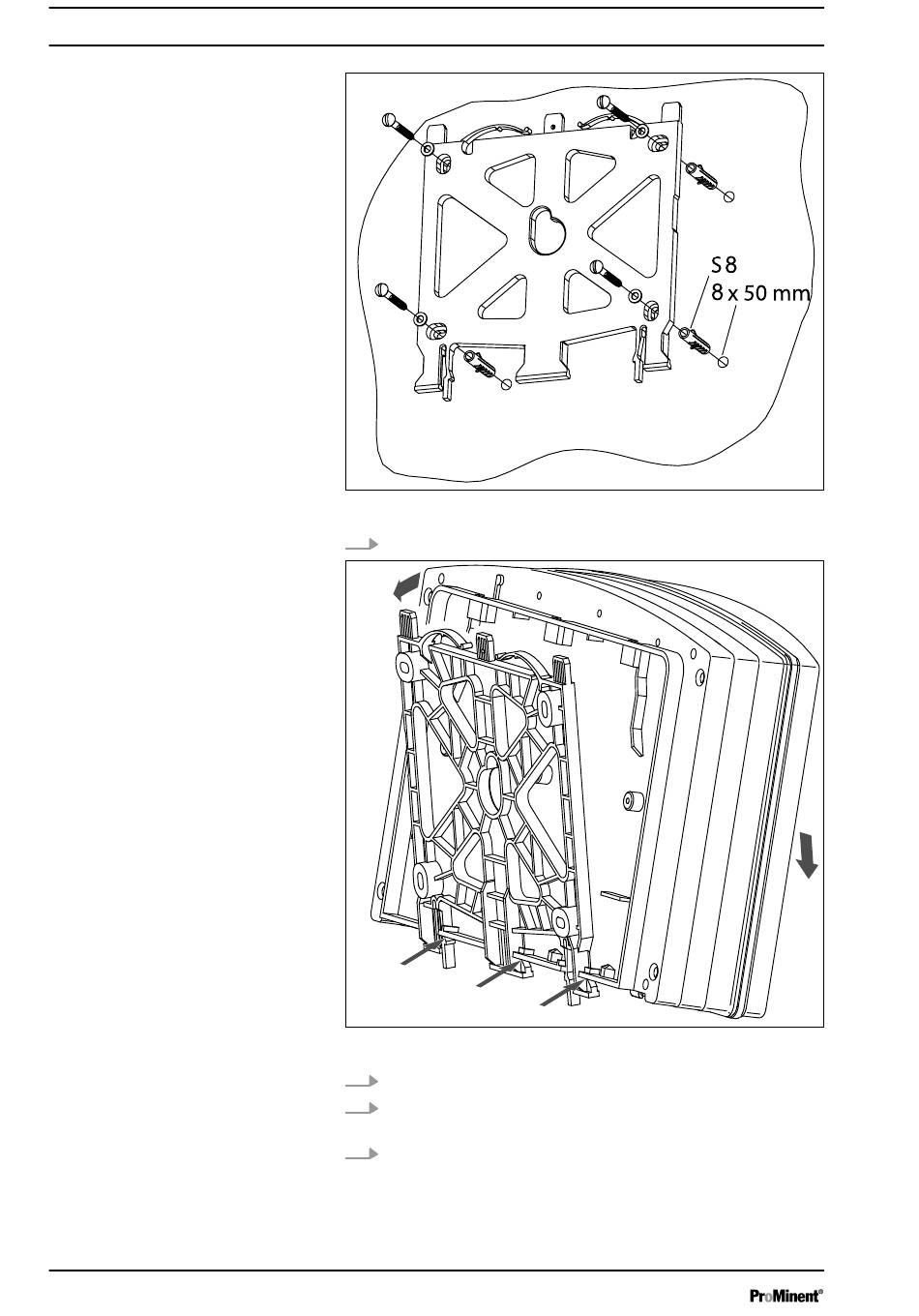

Fig. 12: Fitting surface mount
5. Screw the surface mount into position with the washers.
2
1
Fig. 13: Mounting surface mount
6. Hook the bottom of the housing (1) into the surface mount.
7. Lightly press the housing at the top (2) against the surface
mount.
8. Then check that the housing is hooked in at the top and
press down (3) until it audibly engages.
A0491
3
A0492
