Assembly and installation
9.4.5.2
Terminal layout
optional:
Kommunikatonsmodul
Anschluss des Koaxialkabels an die Schirmklemme

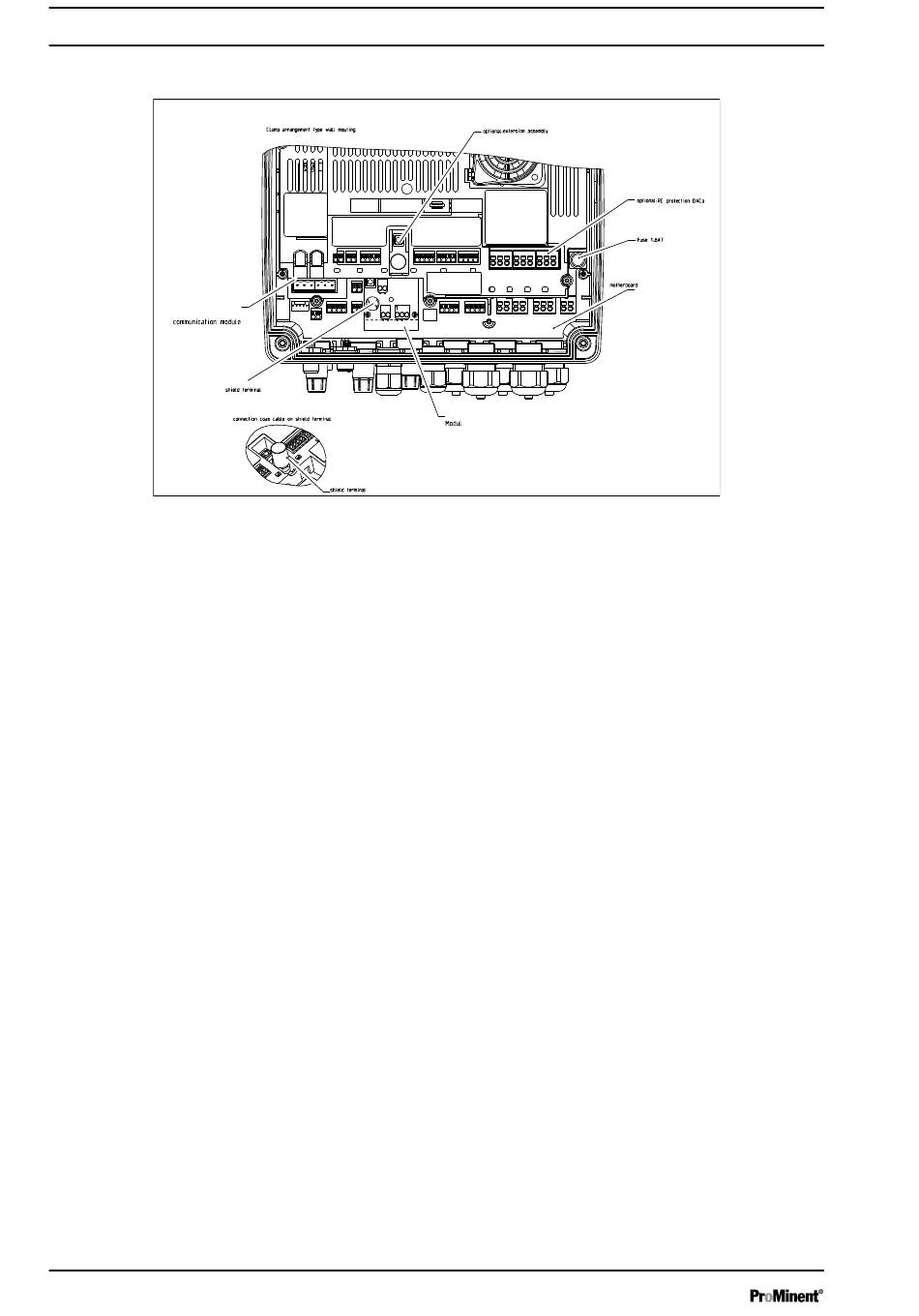

Fig. 19: Terminal layout
9.4.5.2.1
Terminal diagram for the base module (channel 1/2) with assignment options
44
Klemmenanordnung Ausführung Wandgerät
Schirmklemme
Schirmklemme
Base module channel 1 and 2: there can only be one main meas‐
ured variable, e.g. chlorine sensor connected to a unit. The dis‐
solved oxygen sensor type DO3 cannot be connected to the exten‐
sion unit but only to the base module
optional: Erweiterungsbaugruppe
optional:
RC-Schutzbeschaltung
Basisbaugruppe
Messeingang
Sicherung
A2464
